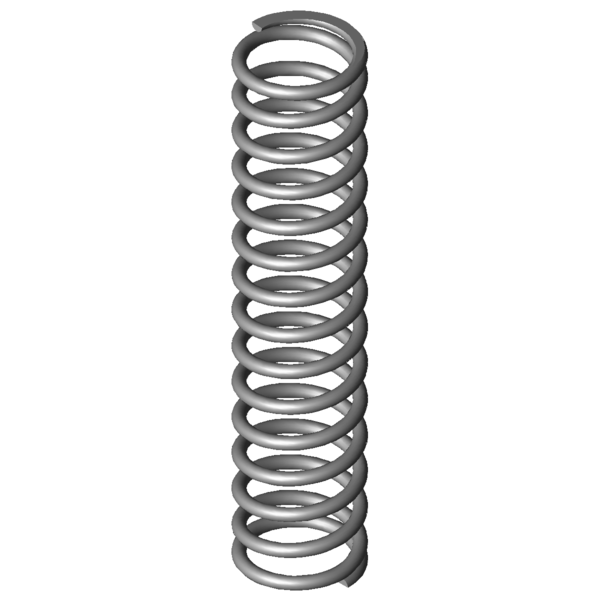

Home » Products » Compression springs » vd-276b Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-276B Stainless steel Ø 2.5 x 20 x 103 mm Scaled prices - Compression spring VD-276B Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Compression spring Buy Product image Compression spring VD-276B Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-276B Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 20 mm Mean coil diameter De 22.5 mm Outer coil diameter Dd 16.8 mm maximum diameter of mandrel Dh 23.3 mm minimum diameter of bush L0 103 mm unstressed spring length Lk mm buckling length Fn 182.402 N maximum force in static use Ln 45.37 mm Minimum length in static use sn 57.64 mm Maximum spring deflection in static use Fndyn 171.911 N maximum force in dynamic use Lndyn 48.68 mm Minimum length in dynamic use shdyn 26.06 mm Maximum stroke in dynamic use S 7.444 mm pitch of spring n 13.5 pc. number of active coils nt pc. total number of coils R 3.165 N/mm Spring rate Weight 37.7887 g weight of one spring Fntol 12.16 N (+/-) tolerance of maximum force in static use Fndtol 11.98 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 2.44 mm (+/-) tolerance of unstressed spring length Price group M - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-276B Stainless steel Ø 2.5 x 20 x 103 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-276B Stainless steel Ø 2.5 x 20 x 103 mm Metal spring characteristic download pdf file CAD data Compression spring VD-276B Stainless steel Ø 2.5 x 20 x 103 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-276B Stainless steel Ø 2.5 x 20 x 103 mm force-path-calculation Compression spring VD-276B Inquiry formular Compression spring VD-276B Stainless steel Ø 2.5 x 20 x 103 mm Inquiry formular Compression spring VD-276B Similar compression springs to Compression spring VD-276B Stainless steel Ø 2.5 x 20 x 103 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-276B 1.4310 2.5 22.5 103 182.402 45.37 57.64 13.5 3.165 100.0 | 100.0 | 100.0 | 100.0 D-276B EN 10270-1 2.5 22.5 103 212.369 45.37 57.64 13.5 3.685 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145DK 21 105 0.059 1.4310 4.23 33.45 71.55 40.2 | 77.1 | 41.4 | 1.9 VD-207JT 22 110 0.411 1.4310 33.369 28.88 81.12 47.2 | 83.8 | 44.7 | 13.0 VD-207T 23.6 90 0.431 1.4310 25.462 30.9 59.1 50.5 | 82.2 | 55.7 | 13.6 VD-206B 24 93 0.529 1.4310 41.679 14.28 78.72 48.3 | 80.0 | 48.0 | 16.7 VD-212E 19.8 104 0.705 1.4310 51.328 31.15 72.85 53.2 | 83.7 | 53.6 | 22.3 VD-210 21.6 110 0.843 1.4310 71.132 25.65 84.35 55.0 | 84.5 | 53.7 | 26.6 VD-232M-01 20 100 1.219 1.4310 83.13 31.8 68.2 63.2 | 86.0 | 65.0 | 38.5 VD-247 21 115 1.512 1.4310 117.394 37.36 77.64 68.2 | 87.6 | 69.3 | 47.8 VD-242A 22 102 1.522 1.4310 105.38 32.75 69.25 70.3 | 92.3 | 70.5 | 48.1 VD-247D 20.5 97 1.638 1.4310 98.001 37.17 59.83 71.7 | 88.4 | 75.0 | 51.8 VD-239A-20 23 94 1.778 1.4310 121.806 25.51 68.49 73.8 | 89.7 | 75.5 | 56.2 VD-242 22 94 2.059 1.4310 134.853 28.5 65.5 78.6 | 89.7 | 81.0 | 65.1 VD-263L 24 98.9 2.083 1.4310 142.516 30.47 68.43 79.9 | 92.6 | 81.2 | 65.8 VD-277A 22.5 120 2.309 1.4310 137.839 60.32 59.69 84.8 | 95.3 | 86.1 | 73.0 VD-276B 22.5 103 3.165 1.4310 182.402 45.37 57.64 100.0 | 100.0 | 100.0 | 100.0 VD-277 22.5 120 3.418 1.4310 255.322 45.3 74.7 87.4 | 95.3 | 74.3 | 92.6 VD-278B 20.5 95 4.689 1.4310 249.409 41.81 53.2 81.6 | 94.4 | 82.7 | 67.5 VD-307A 23.2 105 6.199 1.4310 186.05 74.99 30.01 72.4 | 91.1 | 75.1 | 51.0 VD-288S 20 101 6.819 1.4310 308.244 55.8 45.2 69.1 | 92.1 | 68.8 | 46.4 VD-308A-05 22 113 8.369 1.4310 383.166 67.21 45.79 63.5 | 89.0 | 63.5 | 37.8 VD-306A 23.2 92 8.495 1.4310 302.001 56.45 35.55 62.1 | 88.1 | 61.0 | 37.3 VD-307 23.2 105 9.175 1.4310 479.453 52.74 52.26 63.3 | 91.1 | 64.4 | 34.5 VD-288X-10 19.4 102 9.501 1.4310 455.139 54.1 47.9 61.8 | 90.5 | 61.6 | 33.3 VD-308A-04 22 95 10.228 1.4310 397.299 56.16 38.84 59.0 | 89.4 | 56.6 | 30.9 VD-313M-03 25 101 11.535 1.4310 459.564 61.16 39.84 55.9 | 85.8 | 54.4 | 27.4 VD-313A-10 19.5 102 15.747 1.4310 587.128 64.71 37.29 51.7 | 87.2 | 47.9 | 20.1 VD-338 24 105 22.4 1.4310 898.8 64.88 40.13 48.0 | 84.8 | 45.0 | 14.1 VD-339E 20 100 35.282 1.4310 787.218 77.69 22.31 40.9 | 82.8 | 30.9 | 9.0 VD-339V 22 110 43.193 1.4310 980.164 87.31 22.69 39.5 | 82.3 | 29.0 | 7.3 Number of similar metal springs: 28 Customs tariff number: 73202081; Compression spring VD-276B Country of origin: DE, German; Compression spring VD-276B Product image - Compression springs VD-276B QR-Code: Compression spring VD-276B
