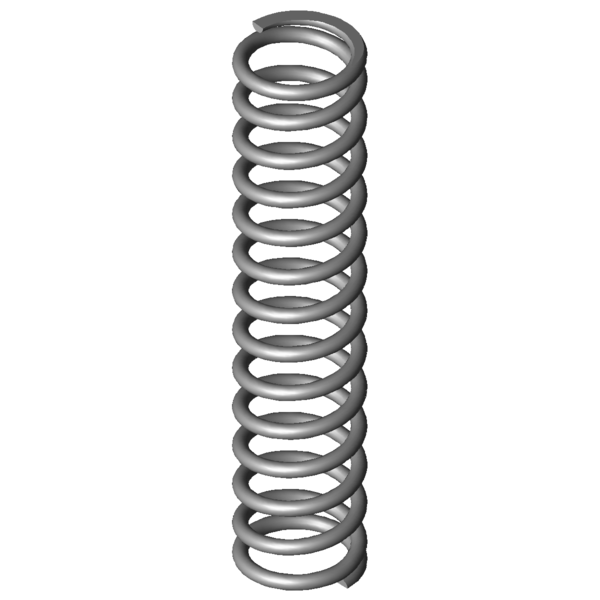

Home » Products » Compression springs » vd-278b Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-278B Stainless steel Ø 2.5 x 18 x 95 mm Scaled prices - Compression spring VD-278B Quantity Single price [EUR] 1 5.5300 EUR 2 3.9000 EUR 3 3.7100 EUR 7 2.9000 EUR 17 1.4300 EUR 37 1.1000 EUR 75 0.9400 EUR 125 0.6511 EUR 175 0.6135 EUR 250 0.5760 EUR 350 0.5306 EUR 450 0.4927 EUR Compression spring Buy Product image Compression spring VD-278B Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-278B Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 2.5 mm Wire diameter Di - mm Inner coil diameter D 18 mm Mean coil diameter De 20.5 mm Outer coil diameter Dd 14.8 mm maximum diameter of mandrel Dh 21.4 mm minimum diameter of bush L0 95 mm unstressed spring length Lk mm buckling length Fn 249.409 N maximum force in static use Ln 41.81 mm Minimum length in static use sn 53.2 mm Maximum spring deflection in static use Fndyn 235.601 N maximum force in dynamic use Lndyn 44.75 mm Minimum length in dynamic use shdyn 13.68 mm Maximum stroke in dynamic use S 7.4 mm pitch of spring n 12.5 pc. number of active coils nt - pc. total number of coils R 4.689 N/mm Spring rate Weight 31.8156 g weight of one spring Fntol 15.04 N (+/-) tolerance of maximum force in static use Fndtol 14.81 N (+/-) tolerance of maximum dynamic force Detol 0.35 mm (+/-) tolerances of outer coil diameter L0tol 1.96 mm (+/-) tolerance of unstressed spring length Price group M - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-278B Stainless steel Ø 2.5 x 18 x 95 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-278B Stainless steel Ø 2.5 x 18 x 95 mm Metal spring characteristic download pdf file CAD data Compression spring VD-278B Stainless steel Ø 2.5 x 18 x 95 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-278B Stainless steel Ø 2.5 x 18 x 95 mm force-path-calculation Compression spring VD-278B Inquiry formular Compression spring VD-278B Stainless steel Ø 2.5 x 18 x 95 mm Inquiry formular Compression spring VD-278B Similar compression springs to Compression spring VD-278B Stainless steel Ø 2.5 x 18 x 95 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-278B 1.4310 2.5 20.5 95 249.409 41.81 53.2 12.5 4.689 100.0 | 100.0 | 100.0 | 100.0 D-278B EN 10270-1 2.5 20.5 95 290.383 41.81 53.2 12.5 5.459 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-206D-16 20.4 85 0.577 1.4310 37.937 19.2 65.8 47.3 | 81.7 | 48.0 | 12.3 VD-212E 19.8 104 0.705 1.4310 51.328 31.15 72.85 48.6 | 84.0 | 46.8 | 15.0 VD-232M-01 20 100 1.219 1.4310 83.13 31.8 68.2 56.6 | 88.2 | 55.7 | 26.0 VD-242A 22 102 1.522 1.4310 105.38 32.75 69.25 60.3 | 88.8 | 59.5 | 32.5 VD-232M 20 86.3 1.604 1.4310 98.263 25.03 61.27 61.4 | 86.8 | 63.1 | 34.2 VD-247D 20.5 97 1.638 1.4310 98.001 37.17 59.83 63.9 | 92.6 | 64.1 | 34.9 VD-239A-20 23 94 1.778 1.4310 121.806 25.51 68.49 63.5 | 89.4 | 63.3 | 37.9 VD-251A 18 98 1.848 1.4310 91.912 48.25 49.75 64.3 | 88.2 | 65.2 | 39.4 VD-246 21 85 1.944 1.4310 107.027 29.94 55.06 66.8 | 89.0 | 69.8 | 41.5 VD-242 22 94 2.059 1.4310 134.853 28.5 65.5 67.4 | 90.7 | 67.6 | 43.9 VD-251 18 98 2.734 1.4310 168.164 36.5 61.5 74.5 | 88.2 | 77.0 | 58.3 VD-263M-04 19 95 2.981 1.4310 157.172 42.28 52.72 79.4 | 93.6 | 81.1 | 63.6 VD-276A 22.5 93 3.165 1.4310 150.755 45.37 47.64 79.6 | 96.3 | 75.0 | 67.5 VD-263VD 20 87.6 3.533 1.4310 172.463 38.78 48.82 83.2 | 93.9 | 80.5 | 75.4 VD-278B 20.5 95 4.689 1.4310 249.409 41.81 53.2 100.0 | 100.0 | 100.0 | 100.0 VD-283A-06 18 91 6.799 1.4310 319.066 44.07 46.93 82.2 | 94.5 | 83.2 | 69.0 VD-288S 20 101 6.819 1.4310 308.244 55.8 45.2 81.8 | 93.6 | 82.9 | 68.7 VD-306A 23.2 92 8.495 1.4310 302.001 56.45 35.55 72.6 | 87.8 | 74.7 | 55.2 VD-288X-10 19.4 102 9.501 1.4310 455.139 54.1 47.9 71.0 | 91.3 | 72.4 | 49.3 VD-288Z-53 21 86.3 9.722 1.4310 359.965 49.28 37.03 69.4 | 90.6 | 69.4 | 48.2 VD-308A-04 22 95 10.228 1.4310 397.299 56.16 38.84 68.1 | 90.4 | 67.9 | 45.8 VD-288Z-40 19.5 85 10.881 1.4310 317.469 55.82 29.18 66.4 | 89.3 | 66.7 | 43.1 VD-288X-09 19.4 89 11.98 1.4310 467.812 49.95 39.05 64.7 | 91.5 | 63.4 | 39.1 VD-313A-10 19.5 102 15.747 1.4310 587.128 64.71 37.29 58.0 | 88.0 | 56.3 | 29.8 VD-313A-09 19.5 89 18.079 1.4310 574.647 57.22 31.78 55.2 | 88.2 | 51.6 | 25.9 VD-313R 18 90.6 31.754 1.4310 656.699 69.92 20.68 45.8 | 84.2 | 38.4 | 14.8 VD-339E 20 100 35.282 1.4310 787.218 77.69 22.31 45.0 | 85.0 | 36.8 | 13.3 VD-339A-05 21 85 36.475 1.4310 751.378 64.4 20.6 44.0 | 83.2 | 36.0 | 12.9 VD-339V-01 19 90 94.155 1.4310 1718.233 71.75 18.25 36.8 | 81.0 | 24.4 | 5.0 Number of similar metal springs: 28 Customs tariff number: 73202081; Compression spring VD-278B Country of origin: DE, German; Compression spring VD-278B Product image - Compression springs VD-278B QR-Code: Compression spring VD-278B
