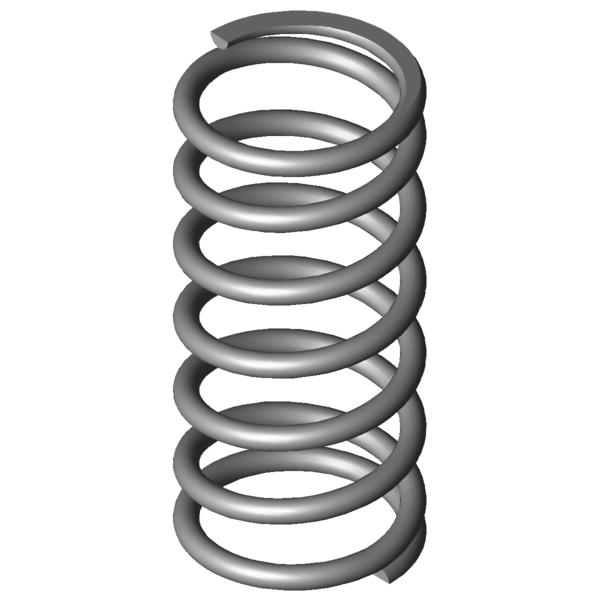

Home » Products » Compression springs » vd-273a-04 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-273A-04 Stainless steel Ø 2.5 x 21.5 x 52 mm Scaled prices - Compression spring VD-273A-04 Quantity Single price [EUR] 1 5.4200 EUR 2 3.8200 EUR 3 3.6400 EUR 7 2.6600 EUR 17 1.3800 EUR 37 1.0200 EUR 75 0.8900 EUR 125 0.5823 EUR 175 0.5445 EUR 250 0.4945 EUR 350 0.4610 EUR 450 0.4169 EUR Compression spring Buy Product image Compression spring VD-273A-04 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-273A-04 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 2.5 mm Wire diameter Di mm Inner coil diameter D 21.5 mm Mean coil diameter De 24 mm Outer coil diameter Dd 18.2 mm maximum diameter of mandrel Dh 25.2 mm minimum diameter of bush L0 52 mm unstressed spring length Lk mm buckling length Fn 189.779 N maximum force in static use Ln 21.65 mm Minimum length in static use sn 30.35 mm Maximum spring deflection in static use Fndyn 180.4 N maximum force in dynamic use Lndyn 23.15 mm Minimum length in dynamic use shdyn 10.8 mm Maximum stroke in dynamic use S 9 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 6.253 N/mm Spring rate Weight 19.6562 g weight of one spring Fntol 12.4 N (+/-) tolerance of maximum force in static use Fndtol 12.35 N (+/-) tolerance of maximum dynamic force Detol 0.45 mm (+/-) tolerances of outer coil diameter L0tol 1.5 mm (+/-) tolerance of unstressed spring length Price group L - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-273A-04 Stainless steel Ø 2.5 x 21.5 x 52 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-273A-04 Stainless steel Ø 2.5 x 21.5 x 52 mm Metal spring characteristic download pdf file CAD data Compression spring VD-273A-04 Stainless steel Ø 2.5 x 21.5 x 52 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-273A-04 Stainless steel Ø 2.5 x 21.5 x 52 mm force-path-calculation Compression spring VD-273A-04 Inquiry formular Compression spring VD-273A-04 Stainless steel Ø 2.5 x 21.5 x 52 mm Inquiry formular Compression spring VD-273A-04 Similar compression springs to Compression spring VD-273A-04 Stainless steel Ø 2.5 x 21.5 x 52 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-273A-04 1.4310 2.5 24 52 189.779 21.65 30.35 5.5 6.253 100.0 | 100.0 | 100.0 | 100.0 D-273A-04 EN 10270-1 2.5 24 52 220.957 21.65 30.35 5.5 7.28 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145DB 24 44.5 0.131 1.4310 4.195 12.41 32.09 41.9 | 75.2 | 48.4 | 2.1 VD-207S 23.6 60 0.634 1.4310 24.044 22.05 37.95 46.5 | 83.0 | 46.3 | 10.1 VD-180J 20 50.4 0.78 1.4310 32.638 8.57 41.83 44.5 | 76.1 | 44.9 | 12.5 VD-206A 24 60.9 0.832 1.4310 42.261 10.11 50.79 44.9 | 80.5 | 41.0 | 13.3 VD-207JR 22 50.7 0.935 1.4310 33.948 14.39 36.31 49.6 | 83.1 | 50.7 | 15.0 VD-208 21.6 48 2.048 1.4310 71.066 13.3 34.7 59.1 | 82.1 | 62.5 | 32.8 VD-247D-06 20 50 2.182 1.4310 41.741 30.87 19.13 54.6 | 86.5 | 42.5 | 34.9 VD-239A-14 23.5 58 2.561 1.4310 102.321 18.05 39.95 65.0 | 89.2 | 64.9 | 41.0 VD-232L 20 51.5 2.77 1.4310 98.322 16.01 35.49 65.9 | 84.8 | 68.7 | 44.3 VD-240A 22 55.4 3.182 1.4310 119.795 17.75 37.65 70.4 | 88.5 | 71.9 | 50.9 VD-263K 24 59.1 3.597 1.4310 142.478 19.49 39.61 75.1 | 92.0 | 75.8 | 57.5 VD-239A-10 23.5 43 4.025 1.4310 121.093 12.91 30.09 77.6 | 86.9 | 81.5 | 64.4 VD-275A 22.5 60 5.026 1.4310 148.707 30.42 29.59 87.3 | 93.5 | 87.9 | 80.4 VD-269 27.5 49 6.25 1.4310 204.375 16.3 32.7 95.5 | 93.8 | 92.8 | 100.0 VD-273A-04 24 52 6.253 1.4310 189.779 21.65 30.35 100.0 | 100.0 | 100.0 | 100.0 VD-275 22.5 54 7.768 1.4310 252.891 21.45 32.56 87.1 | 96.7 | 84.1 | 80.5 VD-288Z-42 27 55.1 9.322 1.4310 273.742 25.73 29.37 79.7 | 88.9 | 83.0 | 67.1 VD-299A 28.2 50.8 10.676 1.4310 250.134 27.37 23.43 74.0 | 87.0 | 76.5 | 58.6 VD-305A 23.2 61 13.493 1.4310 311.496 37.91 23.09 67.2 | 86.7 | 68.5 | 46.4 VD-308A-01 22 56 18.411 1.4310 404.254 34.04 21.96 60.4 | 87.5 | 59.7 | 34.0 VD-305 23.2 49.5 20.852 1.4310 473.531 26.79 22.71 59.1 | 90.0 | 57.5 | 30.0 VD-288X-06 19.4 51 21.195 1.4310 467.351 28.95 22.05 58.2 | 88.4 | 56.6 | 29.5 VD-313L-02 25 57 21.423 1.4310 444.403 36.26 20.74 56.8 | 85.6 | 55.5 | 29.2 VD-313L 25 48.2 27.266 1.4310 495.429 30.03 18.17 52.7 | 86.0 | 49.1 | 22.9 VD-313N-10 22.5 60 29.025 1.4310 638.076 38.02 21.98 52.0 | 83.3 | 51.1 | 21.5 VD-313K-01 25 43 29.992 1.4310 451.258 27.95 15.05 49.8 | 82.7 | 45.8 | 20.9 VD-313A-06 19.5 51 30.509 1.4310 439.503 36.59 14.41 50.3 | 85.0 | 45.3 | 20.5 VD-336 24 49 50.909 1.4310 813.273 33.03 15.98 45.3 | 85.6 | 38.0 | 12.3 VD-339A-01 21.5 50 64.301 1.4310 813.639 37.35 12.65 41.7 | 82.7 | 32.5 | 9.7 VD-339T-10 22 50 121.725 1.4310 1491.136 37.75 12.25 37.6 | 81.1 | 26.5 | 5.1 Number of similar metal springs: 29 Customs tariff number: 73202081; Compression spring VD-273A-04 Country of origin: DE, German; Compression spring VD-273A-04 Product image - Compression springs VD-273A-04 QR-Code: Compression spring VD-273A-04
