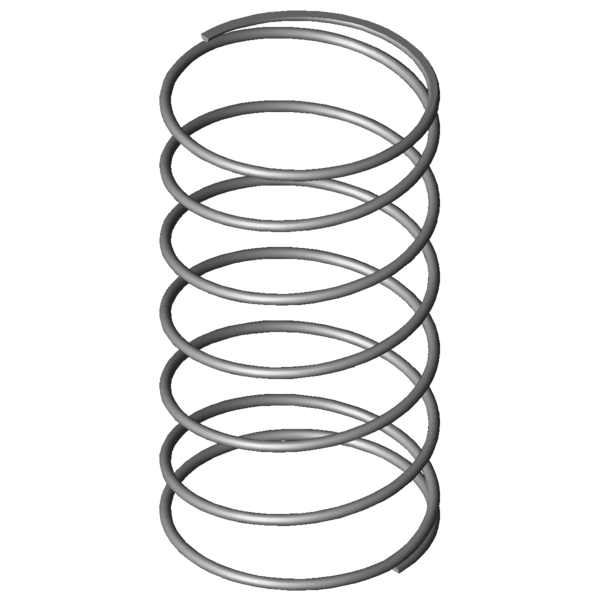

Home » Products » Compression springs » vd-145db Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-145DB Stainless steel Ø 1 x 23 x 44.5 mm Scaled prices - Compression spring VD-145DB Quantity Single price [EUR] 1 5.1100 EUR 2 3.6000 EUR 3 3.4300 EUR 7 2.2200 EUR 17 1.1200 EUR 37 0.7400 EUR 75 0.5500 EUR 125 0.4570 EUR 175 0.4069 EUR 250 0.3567 EUR 350 0.3095 EUR 450 0.2652 EUR Compression spring Buy Product image Compression spring VD-145DB Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-145DB Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1 mm Wire diameter Di mm Inner coil diameter D 23 mm Mean coil diameter De 24 mm Outer coil diameter Dd 21.1 mm maximum diameter of mandrel Dh 24.9 mm minimum diameter of bush L0 44.5 mm unstressed spring length Lk mm buckling length Fn 4.195 N maximum force in static use Ln 12.41 mm Minimum length in static use sn 32.09 mm Maximum spring deflection in static use Fndyn 3.874 N maximum force in dynamic use Lndyn 14.87 mm Minimum length in dynamic use shdyn 29.63 mm Maximum stroke in dynamic use S 7.909 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 0.131 N/mm Spring rate Weight 3.3644 g weight of one spring Fntol 0.63 N (+/-) tolerance of maximum force in static use Fndtol 0.58 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 8.4 mm (+/-) tolerance of unstressed spring length Price group H - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-145DB Stainless steel Ø 1 x 23 x 44.5 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-145DB Stainless steel Ø 1 x 23 x 44.5 mm Metal spring characteristic download pdf file CAD data Compression spring VD-145DB Stainless steel Ø 1 x 23 x 44.5 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-145DB Stainless steel Ø 1 x 23 x 44.5 mm force-path-calculation Compression spring VD-145DB Inquiry formular Compression spring VD-145DB Stainless steel Ø 1 x 23 x 44.5 mm Inquiry formular Compression spring VD-145DB Similar compression springs to Compression spring VD-145DB Stainless steel Ø 1 x 23 x 44.5 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-145DB 1.4310 1 24 44.5 4.195 12.41 32.09 5.5 0.131 100.0 | 100.0 | 100.0 | 100.0 D-145DB EN 10270-1 1 24 44.5 4.885 12.41 32.09 5.5 0.152 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145DH 21 48.5 0.129 1.4310 4.124 16.45 32.05 96.9 | 93.1 | 99.1 | 98.4 VD-145DB 24 44.5 0.131 1.4310 4.195 12.41 32.09 100.0 | 100.0 | 100.0 | 100.0 VD-207JL 26.5 45 0.81 1.4310 27.57 10.96 34.04 52.1 | 85.4 | 54.7 | 16.1 VD-207JR 22 50.7 0.935 1.4310 33.948 14.39 36.31 48.8 | 82.0 | 50.4 | 14.0 VD-212C 19.8 44 1.729 1.4310 50.867 14.59 29.41 46.3 | 81.3 | 49.9 | 7.6 VD-208 21.6 48 2.048 1.4310 71.066 13.3 34.7 45.8 | 81.7 | 49.2 | 6.4 VD-239A-01 25 40.5 3.288 1.4310 90.117 13.09 27.41 42.7 | 79.0 | 45.0 | 4.0 VD-245 21 45 3.711 1.4310 101.725 17.59 27.41 42.4 | 78.8 | 44.8 | 3.5 VD-247D-05 20 43.5 4.001 1.4310 99.391 18.66 24.84 40.4 | 77.0 | 40.8 | 3.3 VD-247B 20.5 41 4.02 1.4310 94.428 17.51 23.49 39.3 | 75.9 | 38.8 | 3.3 VD-239A-10 23.5 43 4.025 1.4310 121.093 12.91 30.09 44.5 | 81.5 | 48.6 | 3.2 VD-240 22 41 5 1.4310 134 14.2 26.8 41.3 | 77.9 | 43.3 | 2.6 VD-263J 24 39.2 5.653 1.4310 142.427 14 25.2 40.3 | 77.8 | 40.7 | 2.3 VD-273A-04 24 52 6.253 1.4310 189.779 21.65 30.35 41.9 | 75.2 | 48.4 | 2.1 VD-274A 22.5 40 7.768 1.4310 144.137 21.45 18.56 35.5 | 74.5 | 30.4 | 1.7 VD-263VB 20 41.1 8.029 1.4310 172.303 19.64 21.46 36.4 | 73.1 | 34.7 | 1.6 VD-273A-02 24 37.5 9.826 1.4310 215.193 15.6 21.9 37.1 | 74.8 | 35.1 | 1.3 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring VD-145DB Country of origin: DE, German; Compression spring VD-145DB Product image - Compression springs VD-145DB QR-Code: Compression spring VD-145DB
