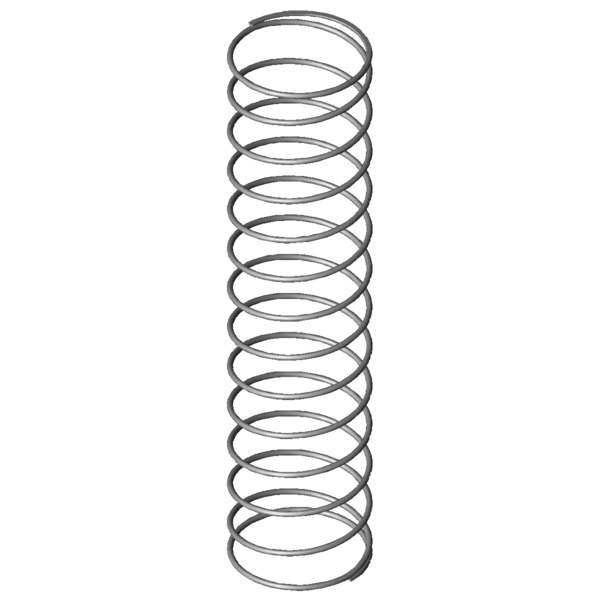

Home » Products » Compression springs » vd-145dd Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-145DD Stainless steel Ø 1 x 23 x 101 mm Scaled prices - Compression spring VD-145DD Quantity Single price [EUR] 1 5.1600 EUR 2 3.6400 EUR 3 3.4700 EUR 7 2.4200 EUR 17 1.1500 EUR 37 0.8500 EUR 75 0.6800 EUR 125 0.4859 EUR 175 0.4196 EUR 250 0.3695 EUR 350 0.3536 EUR 450 0.3284 EUR Compression spring Buy Product image Compression spring VD-145DD Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-145DD Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 1 mm Wire diameter Di mm Inner coil diameter D 23 mm Mean coil diameter De 24 mm Outer coil diameter Dd 21.1 mm maximum diameter of mandrel Dh 24.9 mm minimum diameter of bush L0 101 mm unstressed spring length Lk mm buckling length Fn 4.334 N maximum force in static use Ln 25.67 mm Minimum length in static use sn 75.33 mm Maximum spring deflection in static use Fndyn 4.012 N maximum force in dynamic use Lndyn 31.26 mm Minimum length in dynamic use shdyn 69.74 mm Maximum stroke in dynamic use S 8 mm pitch of spring n 12.5 pc. number of active coils nt pc. total number of coils R 0.058 N/mm Spring rate Weight 6.5045 g weight of one spring Fntol 0.65 N (+/-) tolerance of maximum force in static use Fndtol 0.6 N (+/-) tolerance of maximum dynamic force Detol 0.6 mm (+/-) tolerances of outer coil diameter L0tol 16.7 mm (+/-) tolerance of unstressed spring length Price group J - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-145DD Stainless steel Ø 1 x 23 x 101 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-145DD Stainless steel Ø 1 x 23 x 101 mm Metal spring characteristic download pdf file CAD data Compression spring VD-145DD Stainless steel Ø 1 x 23 x 101 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-145DD Stainless steel Ø 1 x 23 x 101 mm force-path-calculation Compression spring VD-145DD Inquiry formular Compression spring VD-145DD Stainless steel Ø 1 x 23 x 101 mm Inquiry formular Compression spring VD-145DD Similar compression springs to Compression spring VD-145DD Stainless steel Ø 1 x 23 x 101 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-145DD 1.4310 1 24 101 4.334 25.67 75.33 12.5 0.058 100.0 | 100.0 | 100.0 | 100.0 D-145DD EN 10270-1 1 24 101 5.046 25.67 75.33 12.5 0.067 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-145DD 24 101 0.058 1.4310 4.334 25.67 75.33 100.0 | 100.0 | 100.0 | 100.0 VD-145DK 21 105 0.059 1.4310 4.23 33.45 71.55 96.1 | 94.6 | 96.3 | 97.3 VD-207JN 26.5 105 0.334 1.4310 27.57 22.34 82.66 51.7 | 84.5 | 53.4 | 17.2 VD-207JT 22 110 0.411 1.4310 33.369 28.88 81.12 50.1 | 83.4 | 52.9 | 14.0 VD-207T 23.6 90 0.431 1.4310 25.462 30.9 59.1 48.1 | 83.3 | 47.7 | 13.4 VD-206B 24 93 0.529 1.4310 41.679 14.28 78.72 50.6 | 87.8 | 53.0 | 10.9 VD-210 21.6 110 0.843 1.4310 71.132 25.65 84.35 45.3 | 81.4 | 47.7 | 6.8 VD-232M-01 20 100 1.219 1.4310 83.13 31.8 68.2 44.0 | 79.3 | 47.9 | 4.7 VD-239A-04 25 95.5 1.354 1.4310 93.985 26.07 69.43 44.3 | 80.2 | 48.4 | 4.3 VD-242A 22 102 1.522 1.4310 105.38 32.75 69.25 44.0 | 80.2 | 48.0 | 3.8 VD-247D 20.5 97 1.638 1.4310 98.001 37.17 59.83 40.9 | 77.2 | 41.9 | 3.5 VD-239A-20 23 94 1.778 1.4310 121.806 25.51 68.49 43.4 | 79.6 | 47.2 | 3.2 VD-242 22 94 2.059 1.4310 134.853 28.5 65.5 42.0 | 78.2 | 45.1 | 2.8 VD-263L 24 98.9 2.083 1.4310 142.516 30.47 68.43 43.6 | 81.1 | 46.9 | 2.8 VD-276B 22.5 103 3.165 1.4310 182.402 45.37 57.64 39.5 | 77.3 | 39.4 | 1.8 VD-276A 22.5 93 3.165 1.4310 150.755 45.37 47.64 36.7 | 75.3 | 33.1 | 1.8 Number of similar metal springs: 15 Customs tariff number: 73202081; Compression spring VD-145DD Country of origin: DE, German; Compression spring VD-145DD Product image - Compression springs VD-145DD QR-Code: Compression spring VD-145DD
