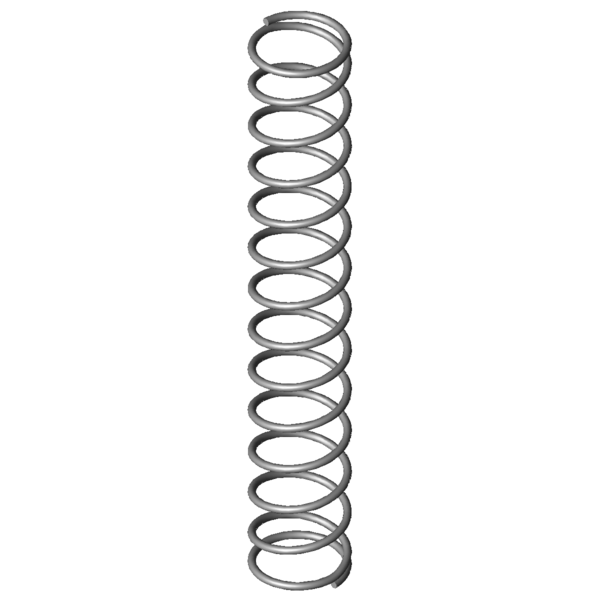

Home » Products » Compression springs » vd-047f Url teilen URL was copied to clipboard, successfully ! Overview Back to overview The Item has been added to your shopping cart. Compression spring VD-047F Stainless steel Ø 0.4 x 4.6 x 31.2 mm Scaled prices - Compression spring VD-047F Quantity Single price [EUR] 1 4.9400 EUR 2 3.4800 EUR 3 3.3200 EUR 7 1.9900 EUR 17 1.0000 EUR 37 0.6100 EUR 75 0.4600 EUR 125 0.3945 EUR 175 0.3631 EUR 250 0.3193 EUR 350 0.2780 EUR 450 0.2212 EUR Compression spring Buy Product image Compression spring VD-047F Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-047F Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed - Spring ends F1 - N prestressed spring force L1 - mm Prestressed spring length s1 - mm Prestressed spring deflection F2 - N Loaded spring force L2 - mm Loaded spring length s2 - mm Loaded spring deflection d 0.4 mm Wire diameter Di - mm Inner coil diameter D 4.6 mm Mean coil diameter De 5 mm Outer coil diameter Dd 3.8 mm maximum diameter of mandrel Dh 5.6 mm minimum diameter of bush L0 31.2 mm unstressed spring length Lk 21.83 mm buckling length Fn 4.291 N maximum force in static use Ln 7.89 mm Minimum length in static use sn 23.31 mm Maximum spring deflection in static use Fndyn 4.153 N maximum force in dynamic use Lndyn 8.64 mm Minimum length in dynamic use shdyn 7.94 mm Maximum stroke in dynamic use S 2.416 mm pitch of spring n 12.5 pc. number of active coils nt - pc. total number of coils R 0.184 N/mm Spring rate Weight 0.2081 g weight of one spring Fntol 0.35 N (+/-) tolerance of maximum force in static use Fndtol 0.35 N (+/-) tolerance of maximum dynamic force Detol 0.23 mm (+/-) tolerances of outer coil diameter L0tol 1.57 mm (+/-) tolerance of unstressed spring length Price group F - price group F1tol - N (+/-) tolerance of prestressed spring force F2tol - N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-047F Stainless steel Ø 0.4 x 4.6 x 31.2 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-047F Stainless steel Ø 0.4 x 4.6 x 31.2 mm Metal spring characteristic download pdf file CAD data Compression spring VD-047F Stainless steel Ø 0.4 x 4.6 x 31.2 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-047F Stainless steel Ø 0.4 x 4.6 x 31.2 mm force-path-calculation Compression spring VD-047F Inquiry formular Compression spring VD-047F Stainless steel Ø 0.4 x 4.6 x 31.2 mm Inquiry formular Compression spring VD-047F Similar compression springs to Compression spring VD-047F Stainless steel Ø 0.4 x 4.6 x 31.2 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-047F 1.4310 0.4 5 31.2 4.291 7.89 23.31 12.5 0.184 100.0 | 100.0 | 100.0 | 100.0 D-047F EN 10270-1 0.4 5 31.2 4.996 7.89 23.31 12.5 0.214 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-026R-05 4 37 0.076 1.4310 2.162 8.42 28.58 62.3 | 79.8 | 66.0 | 41.1 VD-032 4.32 41.6 0.077 1.4310 2.525 9.02 32.58 62.6 | 80.5 | 65.2 | 42.1 VD-032A 4.32 41.9 0.077 1.4310 2.548 9.02 32.88 62.5 | 80.3 | 65.1 | 42.1 VD-046A 5.4 33.4 0.097 1.4310 2.143 11.27 22.13 73.5 | 95.3 | 72.4 | 52.6 VD-026R-04 4 25 0.112 1.4310 2.123 6.03 18.97 68.2 | 78.4 | 65.4 | 60.8 VD-031 4.32 28.9 0.115 1.4310 2.574 6.46 22.44 75.6 | 86.3 | 78.1 | 62.3 VD-030B 4.32 28.6 0.115 1.4310 2.539 6.46 22.14 75.1 | 86.0 | 77.1 | 62.3 VD-047G 5 46.2 0.124 1.4310 4.378 11.01 35.19 79.6 | 89.2 | 82.1 | 67.6 VD-046 5.4 33.4 0.143 1.4310 3.631 8.07 25.33 87.2 | 95.3 | 88.3 | 77.9 VD-046B 5.4 35.8 0.143 1.4310 3.975 8.07 27.73 86.5 | 93.2 | 88.3 | 77.9 VD-042J-03 6 30.2 0.15 1.4310 3.611 6.14 24.06 88.5 | 93.4 | 90.5 | 81.5 VD-037A 3.52 29.3 0.151 1.4310 3.145 8.52 20.78 81.6 | 81.4 | 81.2 | 82.2 VD-037 3.52 28.6 0.151 1.4310 3.039 8.52 20.08 80.5 | 80.7 | 78.5 | 82.2 VD-052A 4.4 35.5 0.156 1.4310 3.554 12.65 22.85 89.0 | 92.0 | 90.4 | 84.5 VD-047F 5 31.2 0.184 1.4310 4.291 7.89 23.31 100.0 | 100.0 | 100.0 | 100.0 VD-052 4.4 35.5 0.189 1.4310 4.701 10.65 24.85 93.9 | 92.0 | 92.5 | 97.3 VD-052B 4.4 36.6 0.189 1.4310 4.909 10.65 25.95 92.3 | 91.1 | 88.6 | 97.3 VD-051A 4.4 24.1 0.189 1.4310 2.545 10.65 13.45 81.4 | 88.4 | 58.5 | 97.3 VD-045A 5.4 24.7 0.211 1.4310 3.956 5.94 18.76 88.1 | 90.6 | 86.3 | 87.3 VD-045 5.4 23.7 0.211 1.4310 3.745 5.94 17.76 86.2 | 89.5 | 81.7 | 87.3 VD-052G 4 30.4 0.26 1.4310 5.18 10.44 19.96 82.5 | 92.5 | 84.2 | 70.9 VD-047E 5 21.2 0.271 1.4310 4.166 5.81 15.39 79.6 | 89.3 | 81.6 | 68.0 VD-051B 4.4 25.1 0.28 1.4310 4.886 7.65 17.45 78.9 | 89.5 | 81.3 | 65.7 VD-051 4.4 24.1 0.28 1.4310 4.606 7.65 16.45 78.7 | 88.4 | 81.9 | 65.7 VD-057A 3.6 25.2 0.304 1.4310 3.961 12.16 13.04 73.0 | 84.3 | 74.1 | 60.6 VD-057B 3.6 26.5 0.37 1.4310 6.004 10.25 16.25 68.7 | 85.6 | 70.6 | 49.8 VD-057 3.6 25.2 0.37 1.4310 5.524 10.25 14.95 68.3 | 84.3 | 70.9 | 49.8 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring VD-047F Country of origin: DE, German; Compression spring VD-047F Product image - Compression springs VD-047F QR-Code: Compression spring VD-047F
