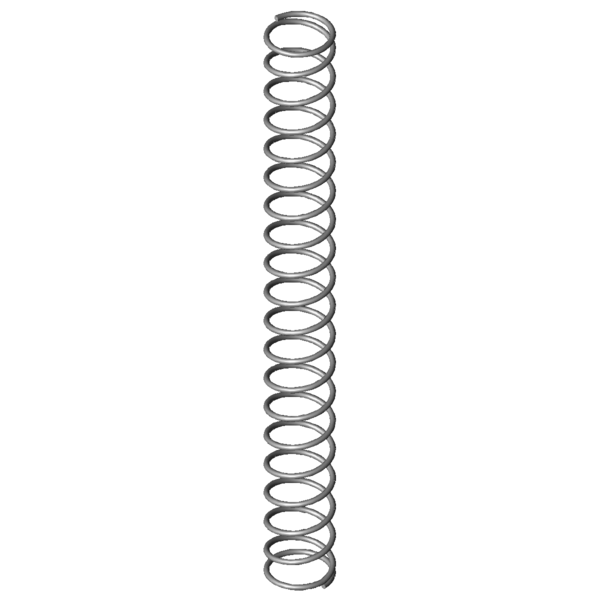

Formula symbolsValueUnitDescription
Material
EN 10270-3-1.4310
-
Type of material
Spring ends
Closed
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
0.4
mm
Wire diameter
Di
mm
Inner coil diameter
D
4.6
mm
Mean coil diameter
De
5
mm
Outer coil diameter
Dd
3.8
mm
maximum diameter of mandrel
Dh
5.6
mm
minimum diameter of bush
L0
46.2
mm
unstressed spring length
Lk
40.64
mm
buckling length
Fn
4.378
N
maximum force in static use
Ln
11.01
mm
Minimum length in static use
sn
35.19
mm
Maximum spring deflection in static use
Fndyn
4.241
N
maximum force in dynamic use
Lndyn
12.11
mm
Minimum length in dynamic use
shdyn
11.45
mm
Maximum stroke in dynamic use
S
2.443
mm
pitch of spring
n
18.5
pc.
number of active coils
nt
pc.
total number of coils
R
0.124
N/mm
Spring rate
Weight
0.2943
g
weight of one spring
Fntol
0.34
N
(+/-) tolerance of maximum force in static use
Fndtol
0.34
N
(+/-) tolerance of maximum dynamic force
Detol
0.23
mm
(+/-) tolerances of outer coil diameter
L0tol
2.22
mm
(+/-) tolerance of unstressed spring length
Price group
F
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
