Detail page Extension Springs: Z-186AI | Spring steel Ø 4 x 36 x 132 mm / 180°

Scaled prices (Price group: AC)

QuantitySingle price [EUR]
1 12.7100 EUR
2 10.1200 EUR
3 5.6200 EUR
7 3.4700 EUR
17 2.1700 EUR
37 1.8100 EUR
75 1.7400 EUR
125 1.7063 EUR
175 1.7081 EUR
250 1.6746 EUR
350 1.6471 EUR

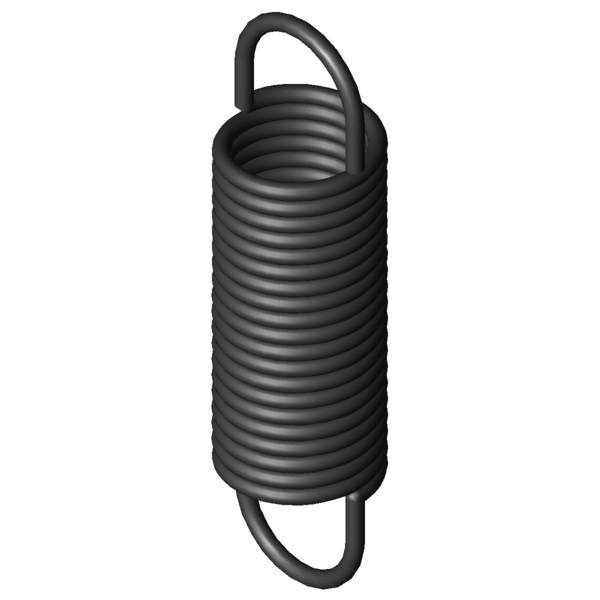

CAD image Extension Springs Z-186AI

Technical Data

Formula symbolsValueUnitDescription
Material EN 10270-1 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 180 ° Eyelet position
d 4 mm Wire diameter
D mm mean coil diameter
De 36 mm outer coil diameter
Dh 42.5 mm minimum bush diameter
L0 132 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 86 mm length of unstressed spring body
Ln mm maximum spring length, inner loop to inner loop
sn 127.2 mm Maximum spring deflection
Fn 528.1 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 23 mm distance of inner edge of loop from the spring body
R 3.88 N/mm Spring rate
F0 34.3 N initial tension
Fntol 27 N (+/-) tolerance of maximum spring force
L0tol 2 mm (+/-) tolerance of unstressed length
Detol 0.5 mm (+/-) tolerance of outer coil diameter
Oesttol 25 degree (+/-) tolerance of loop position
Weight 222.2585 g weight of one spring
Price group AC - price group

Country of origin: DE | Customs tariff number: 73202085

Product image - Extension Springs Z-186AI

Product image - Extension Springs Z-186AI

QR-Code - Extension Springs Z-186AI

QR-Code - Extension Springs - Z-186AI | https://www.federnshop.com/en/products/extension_springs/z-186ai.html
