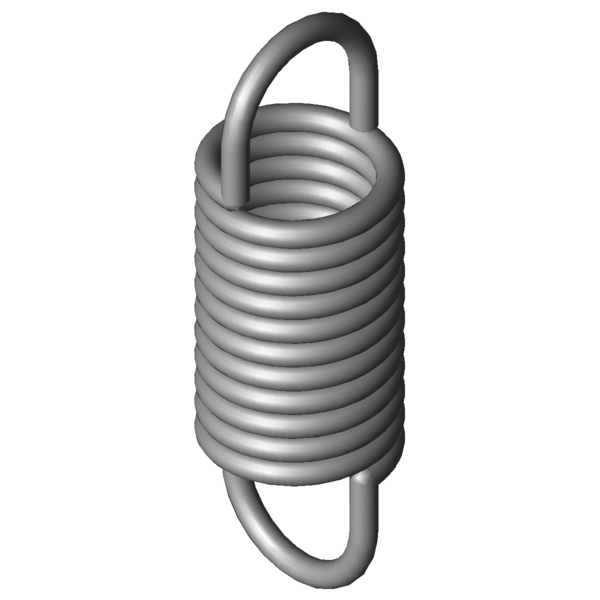

Home » Products » Extension Springs » rz-172x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-172X Stainless steel Ø 3.2 x 23.2 x 68.4 mm / 270° Scaled prices - Extension Spring RZ-172X Quantity Single price [EUR] 1 7.0400 EUR 2 4.4400 EUR 3 3.4600 EUR 7 2.9500 EUR 17 2.9500 EUR 37 2.9500 EUR 75 2.9500 EUR 125 2.9500 EUR 175 2.9500 EUR 250 2.9500 EUR 350 2.9500 EUR 450 2.9500 EUR Extension Spring Buy Product image Extension Spring RZ-172X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-172X Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 23.2 mm outer coil diameter Dh 28.4 mm minimum bush diameter L0 68.4 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 40.8 mm length of unstressed spring body Ln 102.5 mm maximum spring length, inner loop to inner loop sn 34.1 mm Maximum spring deflection Fn 356.7 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 13.8 mm distance of inner edge of loop from the spring body R 9.761 N/mm Spring rate F0 24.3 N initial tension Fntol 32.4 N (+/-) tolerance of maximum spring force L0tol 1.5 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 19 degree (+/-) tolerance of loop position Weight 53.9414 g weight of one spring Price group ###ZN - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-172X Stainless steel Ø 3.2 x 23.2 x 68.4 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-172X Stainless steel Ø 3.2 x 23.2 x 68.4 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring RZ-172X Stainless steel Ø 3.2 x 23.2 x 68.4 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-172X Stainless steel Ø 3.2 x 23.2 x 68.4 mm / 270° force-path-calculation Extension Spring RZ-172X Inquiry formular Extension Spring RZ-172X Stainless steel Ø 3.2 x 23.2 x 68.4 mm / 270° Inquiry formular Extension Spring RZ-172X Similar extension springs to Extension Spring RZ-172X Stainless steel Ø 3.2 x 23.2 x 68.4 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-172X 1.4310 3.2 23.2 68.4 356.7 102.5 34.1 9.761 100.0 | 100.0 | 100.0 | 100.0 Z-172X EN 10270-1 3.2 23.2 68.4 430.1 103.58 35.18 11.364 91.8 | 100.0 | 89.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-147GX 24 68.8 1.256 1.4310 123.7 161.07 92.27 45.6 | 88.3 | 35.8 | 12.8 RZ-134X 22 54.8 1.489 1.4310 103.4 119.4 64.6 45.1 | 79.1 | 40.9 | 15.3 RZ-137X 18.6 65 1.55 1.4310 121.3 137.79 72.79 45.2 | 79.2 | 40.4 | 15.9 RZ-147K-21X 20 75.5 1.671 1.4310 147.2 156.6 81.1 47.0 | 81.9 | 41.7 | 17.4 RZ-151AX 27.5 71 1.715 1.4310 153.7 154.22 83.22 48.7 | 86.3 | 42.0 | 17.7 RZ-140X 18 64.4 1.731 1.4310 125.1 131.27 66.87 46.3 | 78.1 | 43.0 | 17.9 RZ-151X 27.5 68.5 1.861 1.4310 153.7 145.2 76.7 50.1 | 87.4 | 43.8 | 19.2 RZ-147FX 24 55.6 2.029 1.4310 123.7 112.72 57.12 50.0 | 82.2 | 47.2 | 20.7 RZ-154X 22.5 60.5 3.636 1.4310 186.1 107.84 47.34 62.5 | 87.9 | 62.1 | 37.6 RZ-156FX 20 63.5 4.323 1.4310 207.8 107.87 44.37 66.0 | 85.7 | 67.6 | 44.8 RZ-162K-20X 25 65 4.573 1.4310 229.9 111.5 46.5 69.3 | 91.8 | 68.9 | 47.3 RZ-157AX 18.5 62 5.657 1.4310 223.4 98.31 36.31 73.3 | 82.8 | 78.3 | 58.8 RZ-162U-28X 24 69 6.002 1.4310 287.9 113.3 44.3 79.2 | 96.5 | 78.8 | 62.1 RZ-162MX 20 70.6 6.711 1.4310 282.9 109.49 38.89 81.1 | 90.2 | 83.5 | 69.5 RZ-172X 23.2 68.4 9.761 1.4310 356.7 102.5 34.1 100.0 | 100.0 | 100.0 | 100.0 RZ-177LX 25 68.1 15.381 1.4310 463.3 96.32 28.22 79.1 | 93.8 | 79.9 | 63.7 RZ-175X 19.2 62 19.064 1.4310 422.9 82.28 20.28 71.1 | 91.1 | 71.9 | 50.2 RZ-202X 24 85.6 20.364 1.4310 643.3 114.49 28.89 67.5 | 85.5 | 70.1 | 47.0 Number of similar metal springs: 17 Customs tariff number: 73202085; Extension Spring RZ-172X Country of origin: DE, German; Extension Spring RZ-172X Product image - Extension Springs RZ-172X QR-Code: Extension Spring RZ-172X
