Detail page Draw bar spring: SZF-50
Scaled prices (Price group: AS)
QuantitySingle price [EUR]
1
16.7200 EUR
2
13.3200 EUR
3
9.4800 EUR
7
7.5900 EUR
17
6.1000 EUR
37
5.2200 EUR
75
5.1800 EUR
125
5.1918 EUR
175
5.0944 EUR
250
5.0434 EUR
350
4.8174 EUR
Technical Data
Formula symbolsValueUnitDescription
Material
EN 10270-3-1.4310
-
type of material
Fed
VD-170
-
reference of compression spring
De
9.5
mm
outer diameter
L0
50
mm
unstressed spring length
L1
3.3
mm
inner diameter of draw bar
sn
14
mm
maximum spring deflection
h
9.2
mm
length of draw bar
Fn
39.2
mm
maximum force
R
2.79
N/mm
spring rate
dz
1
mm
wire diameter of draw bar
Price group
AS
-
price group
Country of origin: DE | Customs tariff number: 72210090

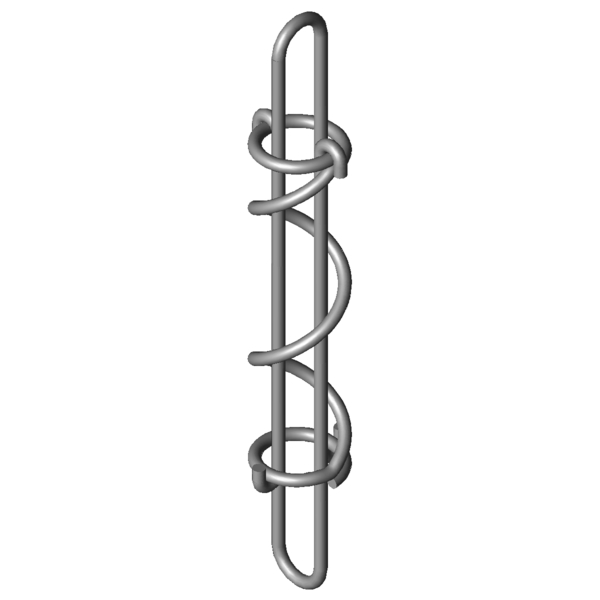

Product image - Draw bar spring SZF-50
