Detail page Draw bar spring: SZF-475
Scaled prices (Price group: BB)
QuantitySingle price [EUR]
1
28.6200 EUR
2
22.8000 EUR
3
21.1300 EUR
7
19.5000 EUR
17
18.2300 EUR
37
16.3700 EUR
75
16.0500 EUR
125
16.1241 EUR
175
15.9734 EUR
250
15.7036 EUR
350
14.8357 EUR
Technical Data
Formula symbolsValueUnitDescription
Material
EN 10270-3-1.4310
-
type of material
Fed
VD-373
-
reference of compression spring
De
82
mm
outer diameter
L0
475
mm
unstressed spring length
L1
44
mm
inner diameter of draw bar
sn
228
mm
maximum spring deflection
h
61
mm
length of draw bar
Fn
1009
mm
maximum force
R
4.41
N/mm
spring rate
dz
6
mm
wire diameter of draw bar
Price group
BB
-
price group
Country of origin: DE | Customs tariff number: 72210090

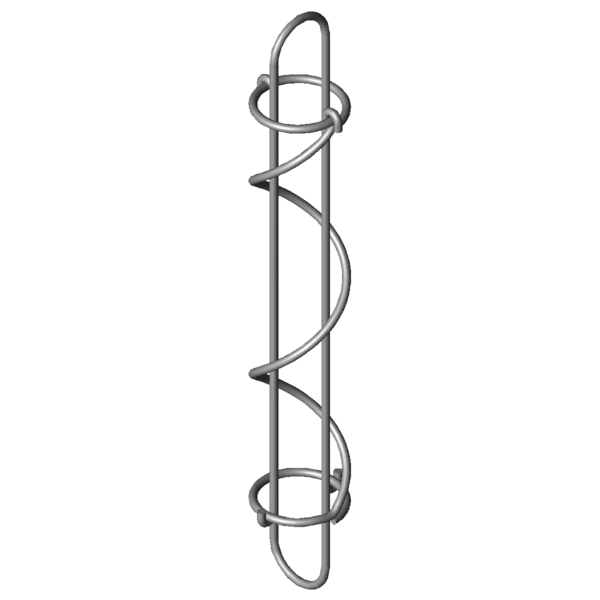

Product image - Draw bar spring SZF-475
