Detail page Draw bar spring: SZF-400
Scaled prices (Price group: AZ)
QuantitySingle price [EUR]
1
19.3600 EUR
2
15.4300 EUR
3
12.4800 EUR
7
10.6000 EUR
17
9.3700 EUR
37
8.2100 EUR
75
8.1200 EUR
125
8.1294 EUR
175
8.0396 EUR
250
7.8127 EUR
350
7.5650 EUR
Technical Data
Formula symbolsValueUnitDescription
Material
EN 10270-3-1.4310
-
type of material
Fed
VD-354
-
reference of compression spring
De
55
mm
outer diameter
L0
400
mm
unstressed spring length
L1
25
mm
inner diameter of draw bar
sn
180
mm
maximum spring deflection
h
45
mm
length of draw bar
Fn
828
mm
maximum force
R
4.61
N/mm
spring rate
dz
5
mm
wire diameter of draw bar
Price group
AZ
-
price group
Country of origin: DE | Customs tariff number: 72210090

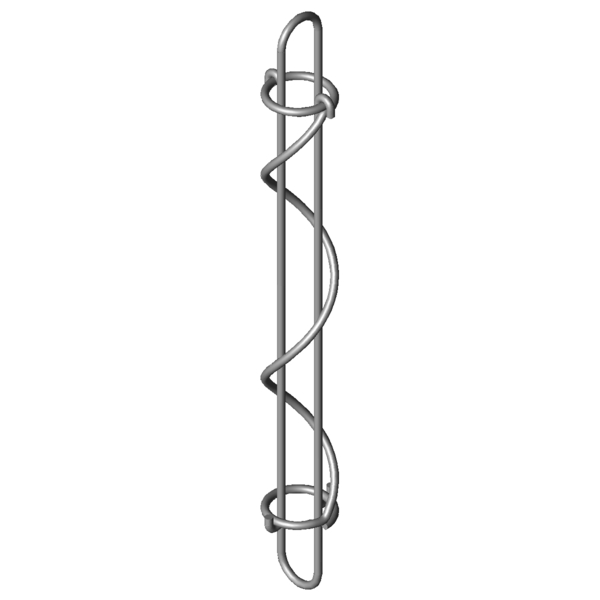

Product image - Draw bar spring SZF-400
