Detail page Draw bar spring: SZF-375

Scaled prices (Price group: AZ)

QuantitySingle price [EUR]
1 19.3600 EUR
2 15.4300 EUR
3 12.4800 EUR
7 10.6000 EUR
17 9.3700 EUR
37 8.2100 EUR
75 8.1200 EUR
125 8.1294 EUR
175 8.0396 EUR
250 7.8127 EUR
350 7.5650 EUR

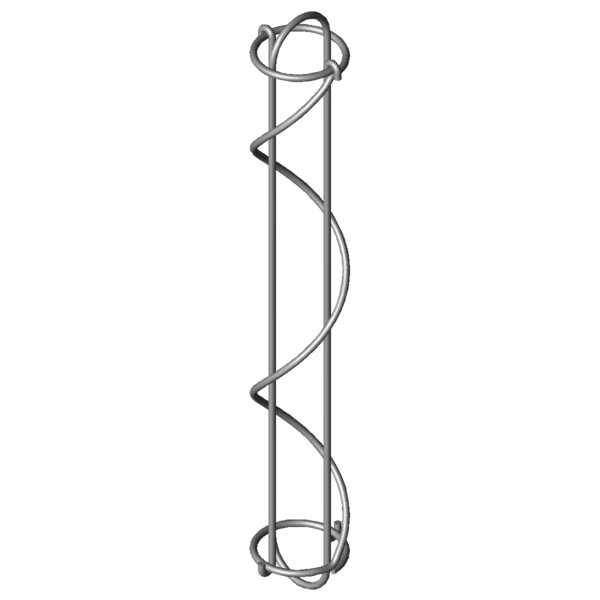

CAD image Draw bar spring SZF-375
Quantity:

Technical Data

Formula symbolsValueUnitDescription
Material EN 10270-3-1.4310 - type of material
Fed VD-317 - reference of compression spring
De 62 mm outer diameter
L0 375 mm unstressed spring length
L1 38 mm inner diameter of draw bar
sn 260 mm maximum spring deflection
h 16 mm length of draw bar
Fn 373 mm maximum force
R 1.43 N/mm spring rate
dz 4 mm wire diameter of draw bar
Price group AZ - price group

Country of origin: DE | Customs tariff number: 72210090

Product image - Draw bar spring SZF-375

Product image - Draw bar spring SZF-375

QR-Code - Draw bar spring SZF-375

QR-Code - Draw bar spring - SZF-375 | https://www.federnshop.com/en/products/draw_bar_springs/szf-375.html
