Detail page Double torsion spring: DSF-605
Scaled prices (Price group: AT)
QuantitySingle price [EUR]
1
16.9900 EUR
2
13.5400 EUR
3
9.7100 EUR
7
8.0900 EUR
17
6.3200 EUR
37
5.6200 EUR
75
5.5400 EUR
125
5.5120 EUR
175
5.4717 EUR
250
5.3171 EUR
350
5.0170 EUR
Technical Data
Formula symbolsValueUnitDescription
Material
EN 10270-3-1.4310
-
type of material
Dd
26
mm
maximum diameter of mandrel
d
4
mm
wire diameter
Di
26.6
mm
inner diameter
n
4.25
pc.
number of coils
Ls
50
mm
leg lengths
L1
78
mm
width
L2
36
mm
width of connecting bar
L3
30
mm
distance from central coil to connecting bar
αn
58
degree
maximum rotational angle
Mn
11497
Nmm
maximum torque
αs
90
degree
angle between leg and connecting bar
Price group
AT
-
price group
Country of origin: DE | Customs tariff number: 73202089

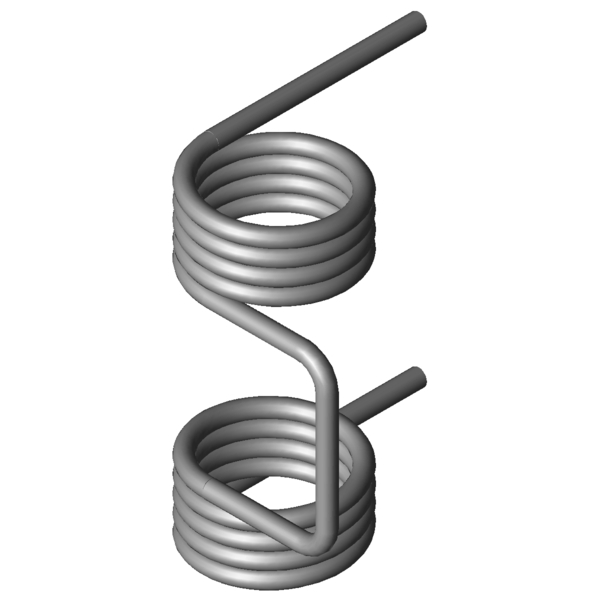

Product image - Double torsion spring DSF-605
