Detail page Double torsion spring: DSF-300

Scaled prices (Price group: AL)

QuantitySingle price [EUR]
1 14.5700 EUR
2 11.6100 EUR
3 7.2800 EUR
7 5.4200 EUR
17 3.8200 EUR
37 3.3100 EUR
75 3.2400 EUR
125 3.2451 EUR
175 3.2080 EUR
250 3.1837 EUR
350 3.1130 EUR

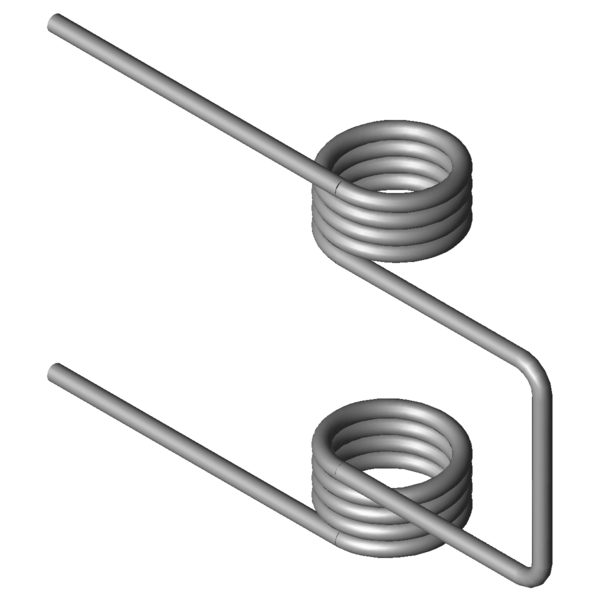

CAD image Double torsion spring DSF-300
Quantity:

Technical Data

Formula symbolsValueUnitDescription
Material EN 10270-3-1.4310 - type of material
Dd 7.1 mm maximum diameter of mandrel
d 1.25 mm wire diameter
Di 7.4 mm inner diameter
n 4 pc. number of coils
Ls 25 mm leg lengths
L1 27.5 mm width
L2 15 mm width of connecting bar
L3 18 mm distance from central coil to connecting bar
αn 62.8 degree maximum rotational angle
Mn 426 Nmm maximum torque
αs degree angle between leg and connecting bar
Price group AL - price group

Country of origin: DE | Customs tariff number: 73202089
