Detail page Double torsion spring: DSF-255

Scaled prices (Price group: AK)

QuantitySingle price [EUR]
1 14.4000 EUR
2 11.4700 EUR
3 7.0900 EUR
7 5.2300 EUR
17 3.6600 EUR
37 3.0100 EUR
75 2.9700 EUR
125 2.9376 EUR
175 2.9180 EUR
250 2.8813 EUR
350 2.8095 EUR

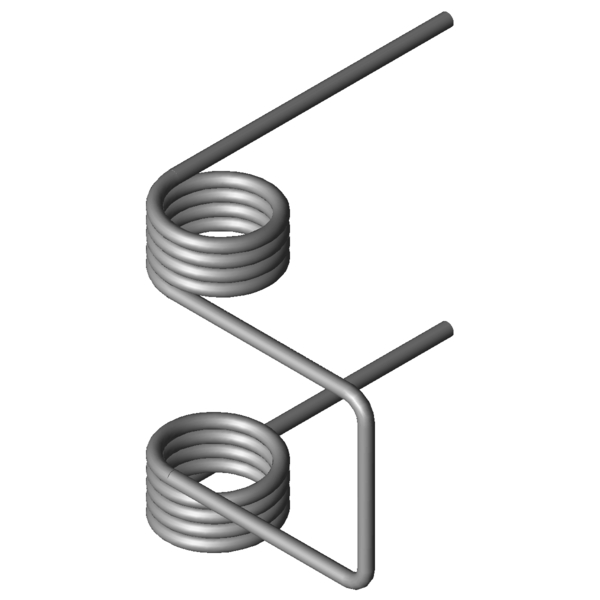

CAD image Double torsion spring DSF-255
Quantity:

Technical Data

Formula symbolsValueUnitDescription
Material EN 10270-3-1.4310 - type of material
Dd 6 mm maximum diameter of mandrel
d 1 mm wire diameter
Di 6.2 mm inner diameter
n 4.25 pc. number of coils
Ls 22 mm leg lengths
L1 22.5 mm width
L2 12 mm width of connecting bar
L3 16 mm distance from central coil to connecting bar
αn 71.8 degree maximum rotational angle
Mn 225 Nmm maximum torque
αs 90 degree angle between leg and connecting bar
Price group AK - price group

Country of origin: DE | Customs tariff number: 73202089

Product image - Double torsion spring DSF-255

Product image - Double torsion spring DSF-255

QR-Code - Double torsion spring DSF-255

QR-Code - Double torsion spring - DSF-255 | https://www.federnshop.com/en/products/double_torsion_springs/dsf-255.html
