Detail page Compression springs: VD-402 | Stainless steel Ø 8 x 63 x 205 mm

Scaled prices (Price group: AT)

QuantitySingle price [EUR]
1 16.9900 EUR
2 13.5400 EUR
3 9.7100 EUR
7 8.0900 EUR
17 6.3200 EUR
37 5.6200 EUR
75 5.5400 EUR
125 5.5120 EUR
175 5.4717 EUR
250 5.3171 EUR
350 5.0170 EUR

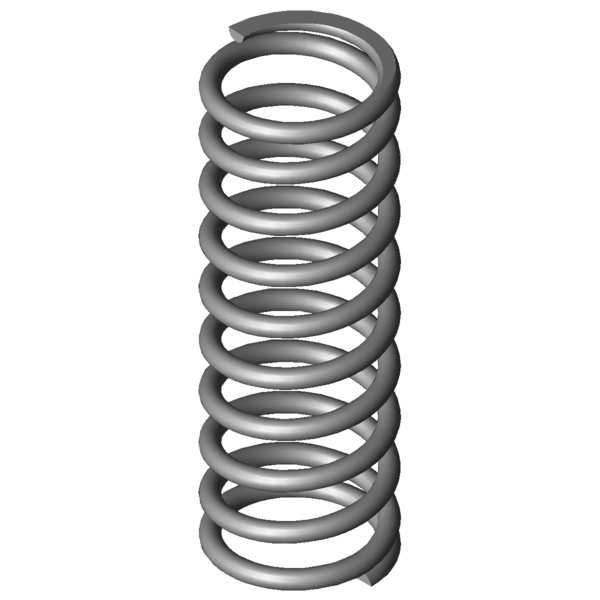

CAD image Compression springs VD-402

Technical Data

Formula symbolsValueUnitDescription
Material EN 10270-3-1.4310 - Type of material
Spring ends Closed and ground - Spring ends
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm Prestressed spring deflection
F2 N Loaded spring force
L2 mm Loaded spring length
s2 mm Loaded spring deflection
d 8 mm Wire diameter
Di mm Inner coil diameter
D 63 mm Mean coil diameter
De 71 mm Outer coil diameter
Dd 53.6 mm maximum diameter of mandrel
Dh 73.1 mm minimum diameter of bush
L0 205 mm unstressed spring length
Lk mm buckling length
Fn 1819.055 N maximum force in static use
Ln 97.13 mm Minimum length in static use
sn 107.87 mm Maximum spring deflection in static use
Fndyn 1708.193 N maximum force in dynamic use
Lndyn 103.7 mm Minimum length in dynamic use
shdyn 20.89 mm Maximum stroke in dynamic use
S 23.176 mm pitch of spring
n 8.5 pc. number of active coils
nt pc. total number of coils
R 16.863 N/mm Spring rate
Weight 825.7147 g weight of one spring
Fntol 102 N (+/-) tolerance of maximum force in static use
Fndtol 100 N (+/-) tolerance of maximum dynamic force
Detol 0.8 mm (+/-) tolerances of outer coil diameter
L0tol 3.62 mm (+/-) tolerance of unstressed spring length
Price group AT - price group
F1tol N (+/-) tolerance of prestressed spring force
F2tol N (+/-) tolerance of loaded spring force

Country of origin: DE | Customs tariff number: 73202081
