Detail page Compression springs: VD-364R-83 | Stainless steel Ø 6 x 40 x 150 mm

Scaled prices (Price group: AK)

QuantitySingle price [EUR]
1 14.4000 EUR
2 11.4700 EUR
3 7.0900 EUR
7 5.2300 EUR
17 3.6600 EUR
37 3.0100 EUR
75 2.9700 EUR
125 2.9376 EUR
175 2.9180 EUR
250 2.8813 EUR
350 2.8095 EUR
CAD image Compression springs VD-364R-83

Technical Data

Formula symbolsValueUnitDescription
Material 1.4310 - Type of material
Spring ends Closed and ground - Spring ends
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm Prestressed spring deflection
F2 N Loaded spring force
L2 mm Loaded spring length
s2 mm Loaded spring deflection
d 6 mm Wire diameter
Di mm Inner coil diameter
D 40 mm Mean coil diameter
De 46 mm Outer coil diameter
Dd 32.9 mm maximum diameter of mandrel
Dh 47.2 mm minimum diameter of bush
L0 150 mm unstressed spring length
Lk mm buckling length
Fn 715.838 N maximum force in static use
Ln 99.5 mm Minimum length in static use
sn 50.5 mm Maximum spring deflection in static use
Fndyn 627.244 N maximum force in dynamic use
Lndyn 105.75 mm Minimum length in dynamic use
shdyn 37.27 mm Maximum stroke in dynamic use
S 11.52 mm pitch of spring
n 12.5 pc. number of active coils
nt pc. total number of coils
R 14.175 N/mm Spring rate
Weight 407.2402 g weight of one spring
Fntol 66.26 N (+/-) tolerance of maximum force in static use
Fndtol 65.18 N (+/-) tolerance of maximum dynamic force
Detol 0.5 mm (+/-) tolerances of outer coil diameter
L0tol 3.29 mm (+/-) tolerance of unstressed spring length
Price group AK - price group
F1tol N (+/-) tolerance of prestressed spring force
F2tol N (+/-) tolerance of loaded spring force

Country of origin: DE | Customs tariff number: 73202081

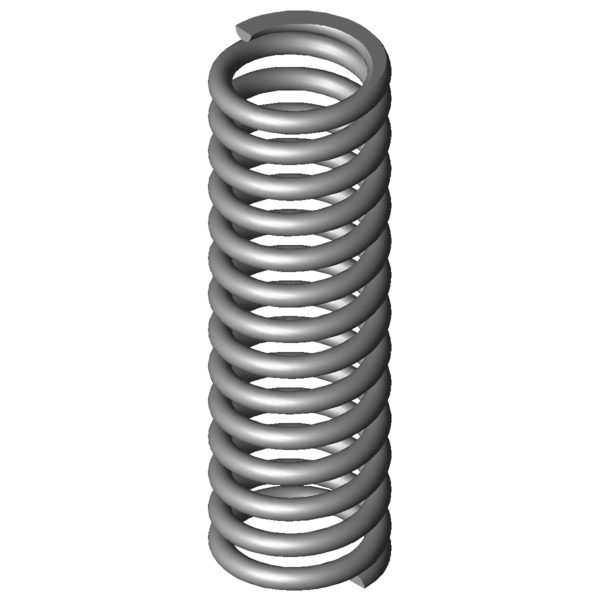

Product image - Compression springs VD-364R-83
