Detail page Compression springs: VD-351B | Stainless steel Ø 5 x 40 x 130 mm

Scaled prices (Price group: AH)

QuantitySingle price [EUR]
1 13.8800 EUR
2 11.0500 EUR
3 6.5900 EUR
7 4.6100 EUR
17 2.9500 EUR
37 2.4600 EUR
75 2.3800 EUR
125 2.3621 EUR
175 2.3490 EUR
250 2.3059 EUR
350 2.2597 EUR

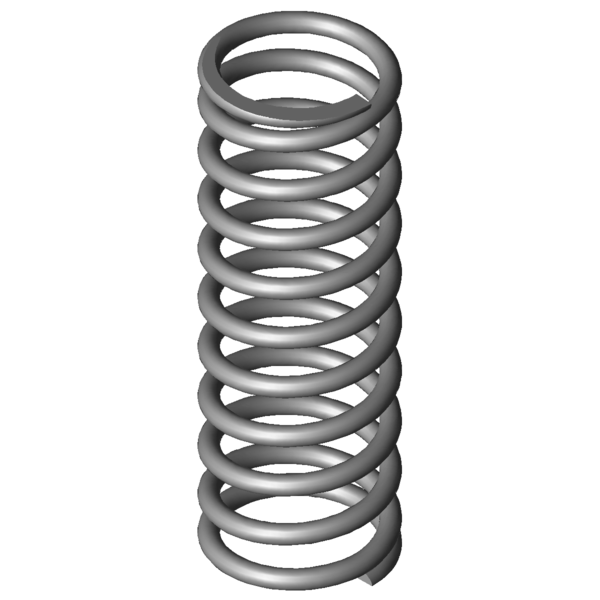

CAD image Compression springs VD-351B

Technical Data

Formula symbolsValueUnitDescription
Material 1.4310 - Type of material
Spring ends Closed and ground - Spring ends
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm Prestressed spring deflection
F2 N Loaded spring force
L2 mm Loaded spring length
s2 mm Loaded spring deflection
d 5 mm Wire diameter
Di mm Inner coil diameter
D 40 mm Mean coil diameter
De 45 mm Outer coil diameter
Dd 34 mm maximum diameter of mandrel
Dh 46.5 mm minimum diameter of bush
L0 130 mm unstressed spring length
Lk mm buckling length
Fn 628.337 N maximum force in static use
Ln 63.82 mm Minimum length in static use
sn 66.18 mm Maximum spring deflection in static use
Fndyn 586.466 N maximum force in dynamic use
Lndyn 68.23 mm Minimum length in dynamic use
shdyn 24.34 mm Maximum stroke in dynamic use
S 13.889 mm pitch of spring
n 9 pc. number of active coils
nt pc. total number of coils
R 9.494 N/mm Spring rate
Weight 214.5423 g weight of one spring
Fntol 42.8 N (+/-) tolerance of maximum force in static use
Fndtol 41.62 N (+/-) tolerance of maximum dynamic force
Detol 0.5 mm (+/-) tolerances of outer coil diameter
L0tol 2.8 mm (+/-) tolerance of unstressed spring length
Price group AH - price group
F1tol N (+/-) tolerance of prestressed spring force
F2tol N (+/-) tolerance of loaded spring force
