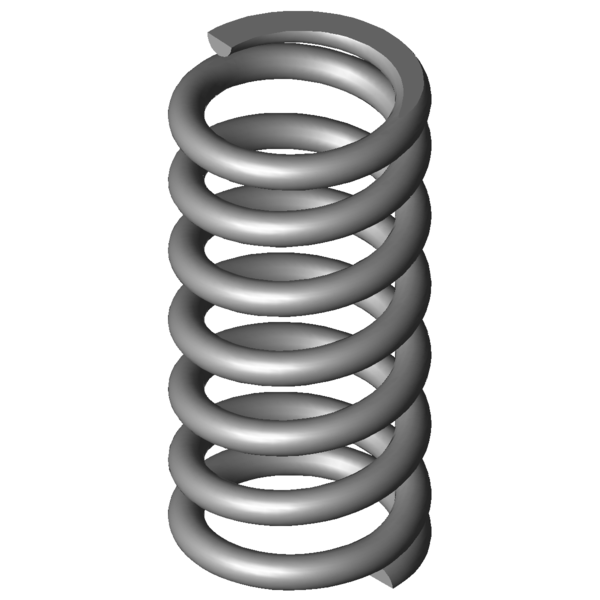

Formula symbolsValueUnitDescription
Material
1.4310
-
Type of material
Spring ends
Closed and ground
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
4
mm
Wire diameter
Di
mm
Inner coil diameter
D
25
mm
Mean coil diameter
De
29
mm
Outer coil diameter
Dd
20.3
mm
maximum diameter of mandrel
Dh
30
mm
minimum diameter of bush
L0
60.5
mm
unstressed spring length
Lk
mm
buckling length
Fn
704.052
N
maximum force in static use
Ln
33.49
mm
Minimum length in static use
sn
27.01
mm
Maximum spring deflection in static use
Fndyn
613.841
N
maximum force in dynamic use
Lndyn
36.95
mm
Minimum length in dynamic use
shdyn
4.3
mm
Maximum stroke in dynamic use
S
10.273
mm
pitch of spring
n
5.5
pc.
number of active coils
nt
pc.
total number of coils
R
26.065
N/mm
Spring rate
Weight
58.5115
g
weight of one spring
Fntol
48.17
N
(+/-) tolerance of maximum force in static use
Fndtol
47.37
N
(+/-) tolerance of maximum dynamic force
Detol
0.35
mm
(+/-) tolerances of outer coil diameter
L0tol
1.18
mm
(+/-) tolerance of unstressed spring length
Price group
AD
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
