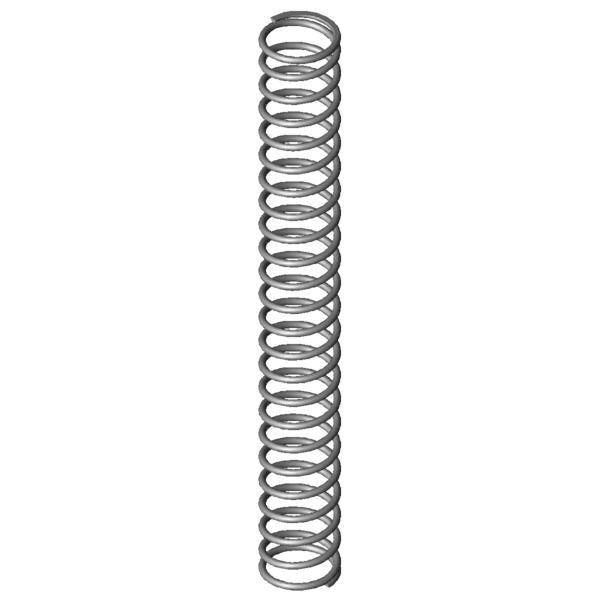

Formula symbolsValueUnitDescription
Material
1.4310
-
Type of material
Spring ends
Closed and ground
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
3.2
mm
Wire diameter
Di
mm
Inner coil diameter
D
32
mm
Mean coil diameter
De
35.2
mm
Outer coil diameter
Dd
27.8
mm
maximum diameter of mandrel
Dh
36.9
mm
minimum diameter of bush
L0
280
mm
unstressed spring length
Lk
235.4
mm
buckling length
Fn
228.48
N
maximum force in static use
Ln
96.4
mm
Minimum length in static use
sn
183.6
mm
Maximum spring deflection in static use
Fndyn
217.28
N
maximum force in dynamic use
Lndyn
105.4
mm
Minimum length in dynamic use
shdyn
76.95
mm
Maximum stroke in dynamic use
S
12.302
mm
pitch of spring
n
22.5
pc.
number of active coils
nt
pc.
total number of coils
R
1.244
N/mm
Spring rate
Weight
156.58
g
weight of one spring
Fntol
14.13
N
(+/-) tolerance of maximum force in static use
Fndtol
13.4
N
(+/-) tolerance of maximum dynamic force
Detol
0.6
mm
(+/-) tolerances of outer coil diameter
L0tol
7
mm
(+/-) tolerance of unstressed spring length
Price group
T
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
