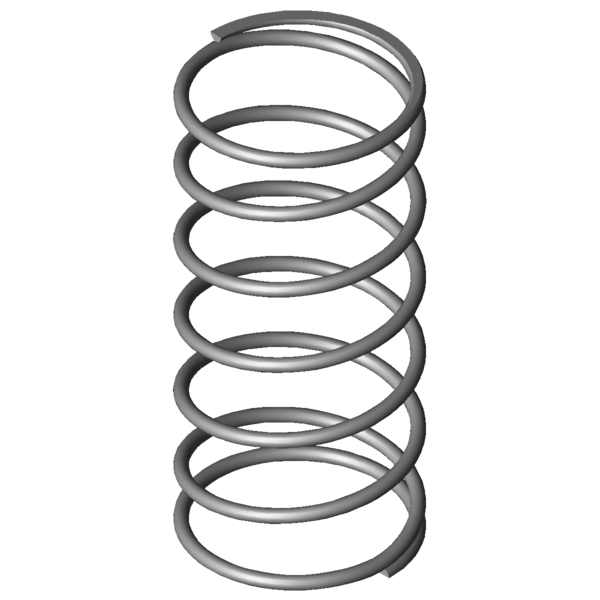

Home » Products » Compression springs » vd-288x-21 Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring VD-288X-21 Stainless steel Ø 3 x 45 x 103 mm Scaled prices - Compression spring VD-288X-21 Quantity Single price [EUR] 1 6.0600 EUR 2 4.2700 EUR 3 4.0700 EUR 7 3.2700 EUR 17 1.9600 EUR 37 1.5300 EUR 75 1.4100 EUR 125 1.1143 EUR 175 1.0455 EUR 250 0.9455 EUR 350 0.8716 EUR 450 0.8148 EUR Compression spring Buy Product image Compression spring VD-288X-21 Quantity:Quantity: Add to shopping cart Technical Data - Compression spring VD-288X-21 Formula symbols Value Unit Description Material 1.4310 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 3 mm Wire diameter Di mm Inner coil diameter D 45 mm Mean coil diameter De 48 mm Outer coil diameter Dd 40.8 mm maximum diameter of mandrel Dh 50.4 mm minimum diameter of bush L0 103 mm unstressed spring length Lk mm buckling length Fn 103.63 N maximum force in static use Ln 29.72 mm Minimum length in static use sn 73.28 mm Maximum spring deflection in static use Fndyn 98.523 N maximum force in dynamic use Lndyn 33.33 mm Minimum length in dynamic use shdyn 51.86 mm Maximum stroke in dynamic use S 18.182 mm pitch of spring n 5.5 pc. number of active coils nt pc. total number of coils R 1.414 N/mm Spring rate Weight 59.2429 g weight of one spring Fntol 11.4 N (+/-) tolerance of maximum force in static use Fndtol 11.31 N (+/-) tolerance of maximum dynamic force Detol 0.9 mm (+/-) tolerances of outer coil diameter L0tol 5.82 mm (+/-) tolerance of unstressed spring length Price group Q - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring VD-288X-21 Stainless steel Ø 3 x 45 x 103 mm Datasheet download pdf file Metal spring characteristic Compression spring VD-288X-21 Stainless steel Ø 3 x 45 x 103 mm Metal spring characteristic download pdf file CAD data Compression spring VD-288X-21 Stainless steel Ø 3 x 45 x 103 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring VD-288X-21 Stainless steel Ø 3 x 45 x 103 mm force-path-calculation Compression spring VD-288X-21 Inquiry formular Compression spring VD-288X-21 Stainless steel Ø 3 x 45 x 103 mm Inquiry formular Compression spring VD-288X-21 Similar compression springs to Compression spring VD-288X-21 Stainless steel Ø 3 x 45 x 103 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness VD-288X-21 1.4310 3 48 103 103.63 29.72 73.28 5.5 1.414 100.0 | 100.0 | 100.0 | 100.0 D-288X-21 EN 10270-1 3 48 103 120.655 29.72 73.28 5.5 1.646 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 2 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness VD-263V-19 46 87 1.186 1.4310 81.151 18.6 68.4 85.9 | 87.9 | 85.8 | 83.9 VD-288X-21 48 103 1.414 1.4310 103.63 29.72 73.28 100.0 | 100.0 | 100.0 | 100.0 VD-288Z 40 100 1.473 1.4310 82.698 43.85 56.15 89.2 | 93.5 | 78.2 | 96.0 VD-263W 42 91.7 1.585 1.4310 116.938 17.9 73.8 89.9 | 86.6 | 94.0 | 89.2 VD-288G 48 104 1.664 1.4310 139.427 20.21 83.79 87.8 | 97.5 | 80.9 | 85.0 VD-289C-02 48 115 1.855 1.4310 155.966 30.93 84.07 82.5 | 94.4 | 76.8 | 76.2 VD-288X-20 48 88 2.222 1.4310 148.681 21.09 66.91 79.8 | 95.1 | 80.5 | 63.6 VD-313E-11 48 120 2.798 1.4310 235.382 35.89 84.11 68.6 | 89.7 | 65.6 | 50.5 VD-313E-10 48 80 4.198 1.4310 225.308 26.33 53.67 60.1 | 87.0 | 59.6 | 33.7 VD-318C 49 103 4.469 1.4310 297.766 36.38 66.62 61.8 | 91.0 | 62.9 | 31.6 VD-314 54 99 5.12 1.4310 370.272 26.68 72.32 59.2 | 86.7 | 63.3 | 27.6 VD-320 44 105 6.364 1.4310 442.273 35.5 69.5 56.5 | 88.3 | 59.1 | 22.2 VD-339L 50 112 6.926 1.4310 498.506 40.02 71.98 54.9 | 84.9 | 59.5 | 20.4 VD-345A 55 100 7.955 1.4310 442.472 44.38 55.63 49.6 | 81.5 | 49.7 | 17.8 VD-349A-10 50 95 8.573 1.4310 362.204 52.75 42.25 47.5 | 82.7 | 43.1 | 16.5 VD-364R-42 54 92 8.929 1.4310 206.319 68.89 23.11 44.7 | 77.3 | 40.9 | 15.8 VD-351A 45 110 11.393 1.4310 628.337 54.85 55.15 46.9 | 82.5 | 45.9 | 12.4 Number of similar metal springs: 16 Customs tariff number: 73202081; Compression spring VD-288X-21 Country of origin: DE, German; Compression spring VD-288X-21 Product image - Compression springs VD-288X-21 QR-Code: Compression spring VD-288X-21
