Detail page Compression springs: VD-288T-05 | Stainless steel Ø 2.8 x 12.2 x 44 mm

Scaled prices (Price group: P)

QuantitySingle price [EUR]
1 5.9700 EUR
2 4.2100 EUR
3 4.0100 EUR
7 3.2100 EUR
17 1.7700 EUR
37 1.3500 EUR
75 1.1900 EUR
125 0.9703 EUR
175 0.8890 EUR
250 0.8202 EUR
350 0.7705 EUR
450 0.7136 EUR

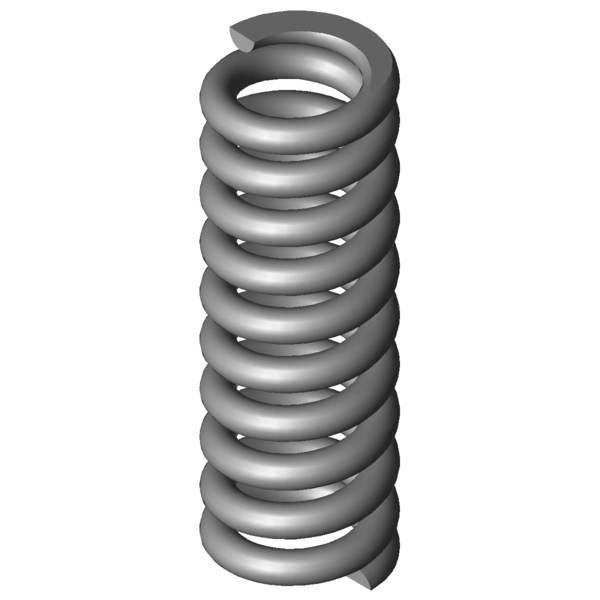

CAD image Compression springs VD-288T-05

Technical Data

Formula symbolsValueUnitDescription
Material 1.4310 - Type of material
Spring ends Closed and ground - Spring ends
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm Prestressed spring deflection
F2 N Loaded spring force
L2 mm Loaded spring length
s2 mm Loaded spring deflection
d 2.8 mm Wire diameter
Di mm Inner coil diameter
D 12.2 mm Mean coil diameter
De 15 mm Outer coil diameter
Dd 8.8 mm maximum diameter of mandrel
Dh 15.7 mm minimum diameter of bush
L0 44 mm unstressed spring length
Lk mm buckling length
Fn 402.191 N maximum force in static use
Ln 32.46 mm Minimum length in static use
sn 11.54 mm Maximum spring deflection in static use
Fndyn 348.799 N maximum force in dynamic use
Lndyn 33.99 mm Minimum length in dynamic use
shdyn 4.29 mm Maximum stroke in dynamic use
S 4.847 mm pitch of spring
n 8.5 pc. number of active coils
nt pc. total number of coils
R 34.845 N/mm Spring rate
Weight 19.5878 g weight of one spring
Fntol 45.15 N (+/-) tolerance of maximum force in static use
Fndtol 44.22 N (+/-) tolerance of maximum dynamic force
Detol 0.3 mm (+/-) tolerances of outer coil diameter
L0tol 0.94 mm (+/-) tolerance of unstressed spring length
Price group P - price group
F1tol N (+/-) tolerance of prestressed spring force
F2tol N (+/-) tolerance of loaded spring force
