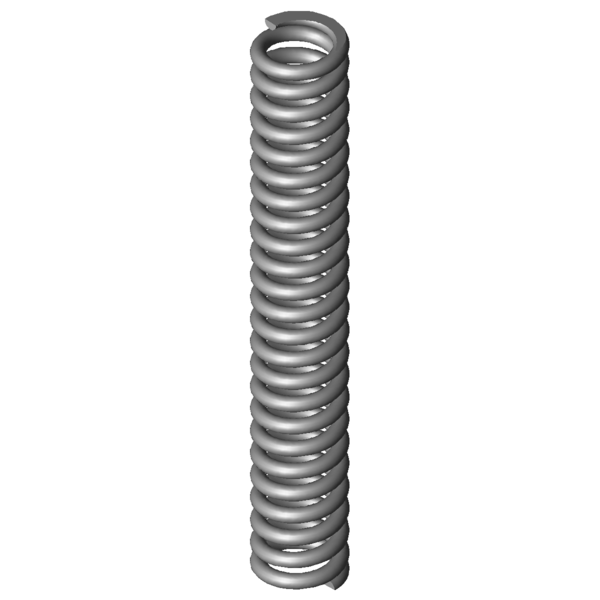

Formula symbolsValueUnitDescription
Material
1.4310
-
Type of material
Spring ends
Closed and ground
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
2.5
mm
Wire diameter
Di
mm
Inner coil diameter
D
12.5
mm
Mean coil diameter
De
15
mm
Outer coil diameter
Dd
9.4
mm
maximum diameter of mandrel
Dh
15.7
mm
minimum diameter of bush
L0
98
mm
unstressed spring length
Lk
77.95
mm
buckling length
Fn
225.677
N
maximum force in static use
Ln
68.98
mm
Minimum length in static use
sn
29.02
mm
Maximum spring deflection in static use
Fndyn
195.611
N
maximum force in dynamic use
Lndyn
72.85
mm
Minimum length in dynamic use
shdyn
19.02
mm
Maximum stroke in dynamic use
S
4.244
mm
pitch of spring
n
22.5
pc.
number of active coils
nt
pc.
total number of coils
R
7.778
N/mm
Spring rate
Weight
37.3316
g
weight of one spring
Fntol
24.6
N
(+/-) tolerance of maximum force in static use
Fndtol
24.07
N
(+/-) tolerance of maximum dynamic force
Detol
0.3
mm
(+/-) tolerances of outer coil diameter
L0tol
2.28
mm
(+/-) tolerance of unstressed spring length
Price group
M
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
