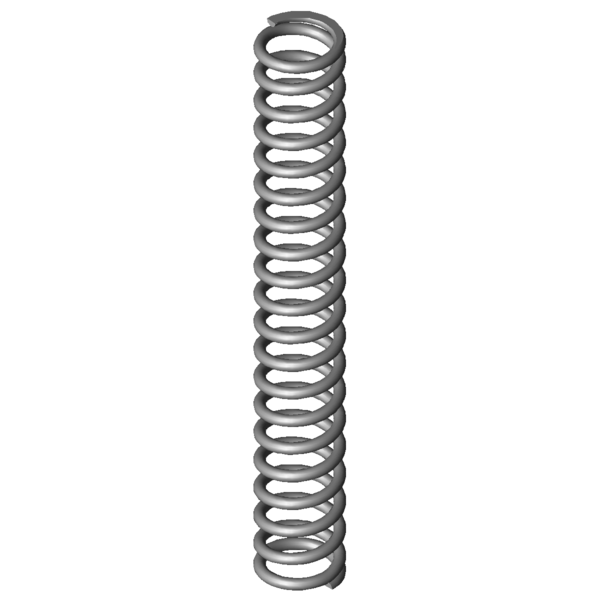

Formula symbolsValueUnitDescription
Material
1.4310
-
Type of material
Spring ends
Closed and ground
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
2.5
mm
Wire diameter
Di
mm
Inner coil diameter
D
16
mm
Mean coil diameter
De
18.5
mm
Outer coil diameter
Dd
12.9
mm
maximum diameter of mandrel
Dh
19.3
mm
minimum diameter of bush
L0
130
mm
unstressed spring length
Lk
105.5
mm
buckling length
Fn
319.352
N
maximum force in static use
Ln
59.2
mm
Minimum length in static use
sn
70.8
mm
Maximum spring deflection in static use
Fndyn
259.135
N
maximum force in dynamic use
Lndyn
72.55
mm
Minimum length in dynamic use
shdyn
14.83
mm
Maximum stroke in dynamic use
S
6.892
mm
pitch of spring
n
18.5
pc.
number of active coils
nt
pc.
total number of coils
R
4.511
N/mm
Spring rate
Weight
39.9829
g
weight of one spring
Fntol
18.26
N
(+/-) tolerance of maximum force in static use
Fndtol
17.96
N
(+/-) tolerance of maximum dynamic force
Detol
0.3
mm
(+/-) tolerances of outer coil diameter
L0tol
2.41
mm
(+/-) tolerance of unstressed spring length
Price group
M
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
