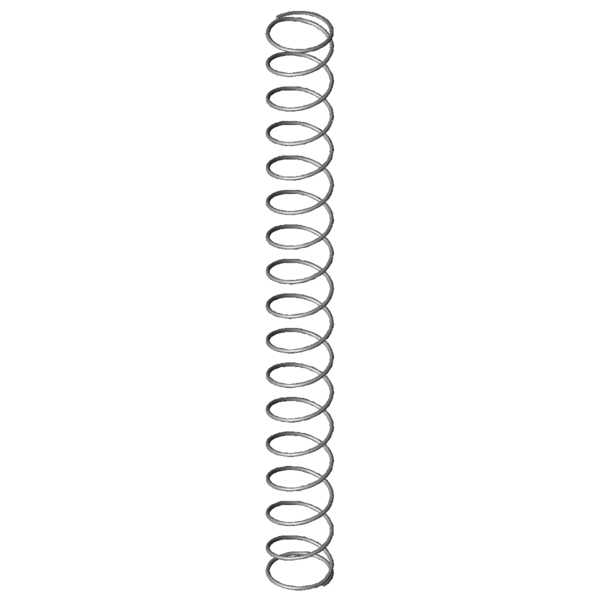

Formula symbolsValueUnitDescription
Material
EN 10270-3-1.4310
-
Type of material
Spring ends
Closed and ground
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
2
mm
Wire diameter
Di
mm
Inner coil diameter
D
32
mm
Mean coil diameter
De
34
mm
Outer coil diameter
Dd
29.1
mm
maximum diameter of mandrel
Dh
36.3
mm
minimum diameter of bush
L0
332
mm
unstressed spring length
Lk
294.75
mm
buckling length
Fn
77.73
N
maximum force in static use
Ln
50
mm
Minimum length in static use
sn
282
mm
Maximum spring deflection in static use
Fndyn
75.664
N
maximum force in dynamic use
Lndyn
57.5
mm
Minimum length in dynamic use
shdyn
83.44
mm
Maximum stroke in dynamic use
S
21.29
mm
pitch of spring
n
15.5
pc.
number of active coils
nt
pc.
total number of coils
R
0.276
N/mm
Spring rate
Weight
43.6886
g
weight of one spring
Fntol
5.12
N
(+/-) tolerance of maximum force in static use
Fndtol
5.09
N
(+/-) tolerance of maximum dynamic force
Detol
0.7
mm
(+/-) tolerances of outer coil diameter
L0tol
14.34
mm
(+/-) tolerance of unstressed spring length
Price group
K
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
