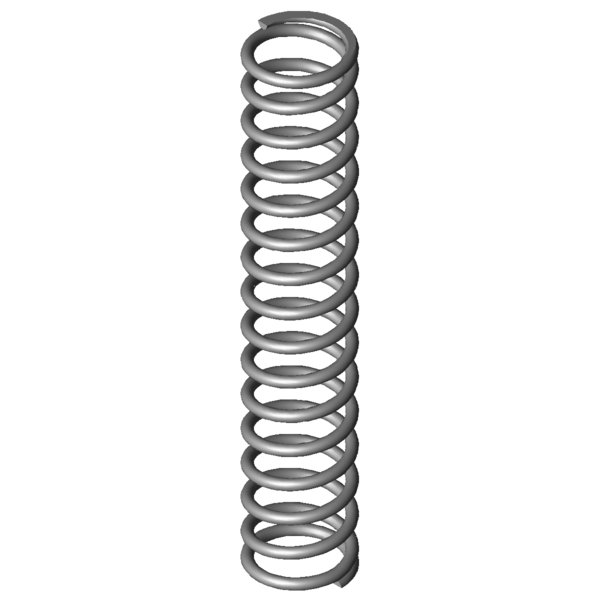

Formula symbolsValueUnitDescription
Material
EN 10270-3-1.4310
-
Type of material
Spring ends
Closed and ground
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
0.9
mm
Wire diameter
Di
mm
Inner coil diameter
D
7.1
mm
Mean coil diameter
De
8
mm
Outer coil diameter
Dd
5.8
mm
maximum diameter of mandrel
Dh
8.6
mm
minimum diameter of bush
L0
43
mm
unstressed spring length
Lk
25.3
mm
buckling length
Fn
28.348
N
maximum force in static use
Ln
17.37
mm
Minimum length in static use
sn
25.63
mm
Maximum spring deflection in static use
Fndyn
26.958
N
maximum force in dynamic use
Lndyn
18.63
mm
Minimum length in dynamic use
shdyn
11.65
mm
Maximum stroke in dynamic use
S
2.903
mm
pitch of spring
n
14.5
pc.
number of active coils
nt
pc.
total number of coils
R
1.106
N/mm
Spring rate
Weight
1.8507
g
weight of one spring
Fntol
2.02
N
(+/-) tolerance of maximum force in static use
Fndtol
2
N
(+/-) tolerance of maximum dynamic force
Detol
0.25
mm
(+/-) tolerances of outer coil diameter
L0tol
1.45
mm
(+/-) tolerance of unstressed spring length
Price group
G
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
