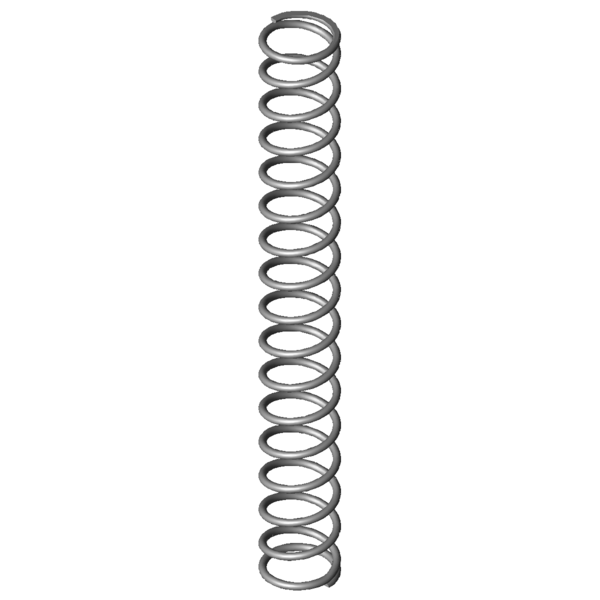

Formula symbolsValueUnitDescription
Material
EN 10270-3-1.4310
-
Type of material
Spring ends
Closed and ground
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
0.63
mm
Wire diameter
Di
mm
Inner coil diameter
D
5.77
mm
Mean coil diameter
De
6.4
mm
Outer coil diameter
Dd
4.7
mm
maximum diameter of mandrel
Dh
7
mm
minimum diameter of bush
L0
51
mm
unstressed spring length
Lk
42.86
mm
buckling length
Fn
17.151
N
maximum force in static use
Ln
13.95
mm
Minimum length in static use
sn
37.05
mm
Maximum spring deflection in static use
Fndyn
14.675
N
maximum force in dynamic use
Lndyn
19.3
mm
Minimum length in dynamic use
shdyn
7.3
mm
Maximum stroke in dynamic use
S
3.25
mm
pitch of spring
n
15.5
pc.
number of active coils
nt
pc.
total number of coils
R
0.463
N/mm
Spring rate
Weight
0.7817
g
weight of one spring
Fntol
0.98
N
(+/-) tolerance of maximum force in static use
Fndtol
0.97
N
(+/-) tolerance of maximum dynamic force
Detol
0.25
mm
(+/-) tolerances of outer coil diameter
L0tol
1.55
mm
(+/-) tolerance of unstressed spring length
Price group
H
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
