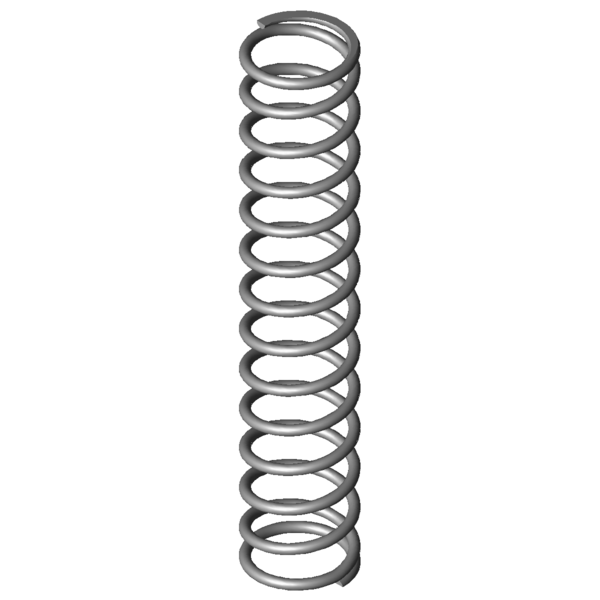

Formula symbolsValueUnitDescription
Material
EN 10270-3-1.4310
-
Type of material
Spring ends
Closed and ground
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
0.5
mm
Wire diameter
Di
mm
Inner coil diameter
D
4.5
mm
Mean coil diameter
De
5
mm
Outer coil diameter
Dd
3.4
mm
maximum diameter of mandrel
Dh
5.6
mm
minimum diameter of bush
L0
26
mm
unstressed spring length
Lk
13.53
mm
buckling length
Fn
8.337
N
maximum force in static use
Ln
8.63
mm
Minimum length in static use
sn
17.37
mm
Maximum spring deflection in static use
Fndyn
8.008
N
maximum force in dynamic use
Lndyn
9.32
mm
Minimum length in dynamic use
shdyn
5.92
mm
Maximum stroke in dynamic use
S
2.04
mm
pitch of spring
n
12.5
pc.
number of active coils
nt
pc.
total number of coils
R
0.48
N/mm
Spring rate
Weight
0.3182
g
weight of one spring
Fntol
0.63
N
(+/-) tolerance of maximum force in static use
Fndtol
0.63
N
(+/-) tolerance of maximum dynamic force
Detol
0.25
mm
(+/-) tolerances of outer coil diameter
L0tol
1.06
mm
(+/-) tolerance of unstressed spring length
Price group
F
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
