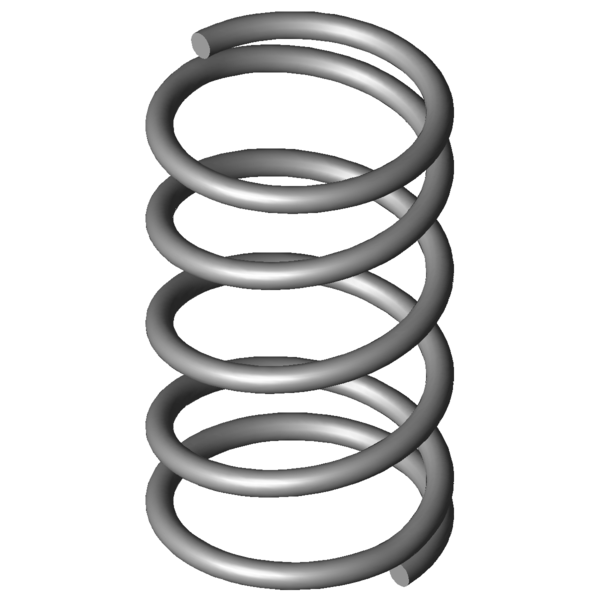

Formula symbolsValueUnitDescription
Material
EN 10270-3-1.4310
-
Type of material
Spring ends
Closed
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
0.32
mm
Wire diameter
Di
mm
Inner coil diameter
D
3.2
mm
Mean coil diameter
De
3.52
mm
Outer coil diameter
Dd
2.4
mm
maximum diameter of mandrel
Dh
4
mm
minimum diameter of bush
L0
6.1
mm
unstressed spring length
Lk
mm
buckling length
Fn
2.864
N
maximum force in static use
Ln
2.52
mm
Minimum length in static use
sn
3.58
mm
Maximum spring deflection in static use
Fndyn
2.752
N
maximum force in dynamic use
Lndyn
2.66
mm
Minimum length in dynamic use
shdyn
1.48
mm
Maximum stroke in dynamic use
S
1.514
mm
pitch of spring
n
3.5
pc.
number of active coils
nt
pc.
total number of coils
R
0.8
N/mm
Spring rate
Weight
0.0352
g
weight of one spring
Fntol
0.33
N
(+/-) tolerance of maximum force in static use
Fndtol
0.33
N
(+/-) tolerance of maximum dynamic force
Detol
0.2
mm
(+/-) tolerances of outer coil diameter
L0tol
0.36
mm
(+/-) tolerance of unstressed spring length
Price group
D
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
