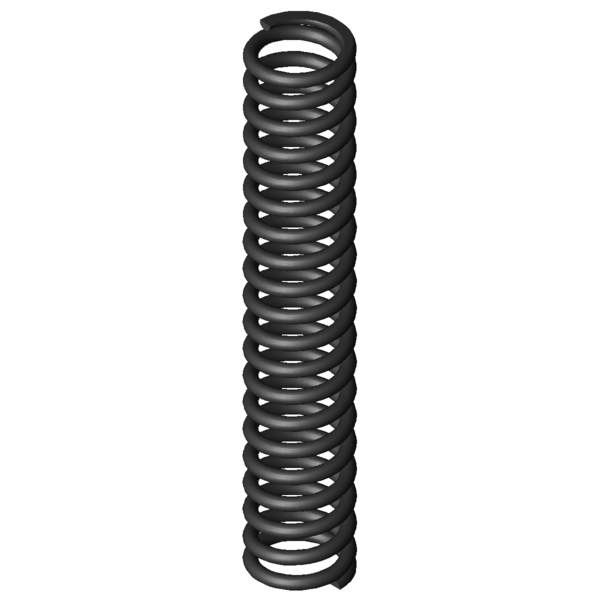

Formula symbolsValueUnitDescription
Material
EN 10270-1
-
Type of material
Spring ends
Closed and ground
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
10
mm
Wire diameter
Di
mm
Inner coil diameter
D
63
mm
Mean coil diameter
De
73
mm
Outer coil diameter
Dd
51
mm
maximum diameter of mandrel
Dh
75
mm
minimum diameter of bush
L0
410
mm
unstressed spring length
Lk
277.41
mm
buckling length
Fn
3864.709
N
maximum force in static use
Ln
234.51
mm
Minimum length in static use
sn
175.49
mm
Maximum spring deflection in static use
Fndyn
3539.739
N
maximum force in dynamic use
Lndyn
249.27
mm
Minimum length in dynamic use
shdyn
64.78
mm
Maximum stroke in dynamic use
S
21.622
mm
pitch of spring
n
18.5
pc.
number of active coils
nt
pc.
total number of coils
R
22.023
N/mm
Spring rate
Weight
2518.9214
g
weight of one spring
Fntol
195
N
(+/-) tolerance of maximum force in static use
Fndtol
190
N
(+/-) tolerance of maximum dynamic force
Detol
0.8
mm
(+/-) tolerances of outer coil diameter
L0tol
6.25
mm
(+/-) tolerance of unstressed spring length
Price group
BC
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
