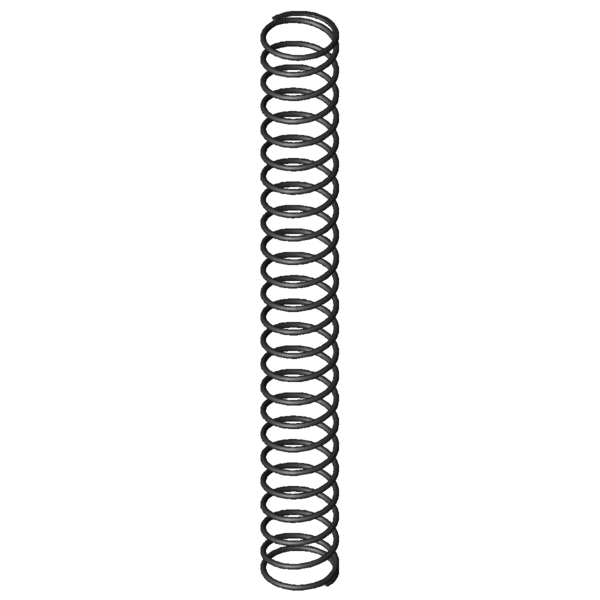

Home » Products » Compression springs » d-369a Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Compression spring D-369A Spring steel Ø 6.3 x 80 x 720 mm Scaled prices - Compression spring D-369A Quantity Single price [EUR] 1 17.2900 EUR 2 13.7700 EUR 3 10.0900 EUR 7 8.3300 EUR 17 7.1500 EUR 37 6.1700 EUR 75 6.0800 EUR 125 6.0685 EUR 175 6.0249 EUR 250 5.8410 EUR 350 5.6505 EUR Compression spring Buy Product image Compression spring D-369A Quantity:Quantity: Add to shopping cart Technical Data - Compression spring D-369A Formula symbols Value Unit Description Material EN 10270-1 - Type of material Spring ends Closed and ground - Spring ends F1 N prestressed spring force L1 mm Prestressed spring length s1 mm Prestressed spring deflection F2 N Loaded spring force L2 mm Loaded spring length s2 mm Loaded spring deflection d 6.3 mm Wire diameter Di mm Inner coil diameter D 80 mm Mean coil diameter De 86.3 mm Outer coil diameter Dd 72 mm maximum diameter of mandrel Dh 88.7 mm minimum diameter of bush L0 720 mm unstressed spring length Lk 612.3 mm buckling length Fn 720.488 N maximum force in static use Ln 202.81 mm Minimum length in static use sn 517.19 mm Maximum spring deflection in static use Fndyn 686.735 N maximum force in dynamic use Lndyn 227.04 mm Minimum length in dynamic use shdyn 294.44 mm Maximum stroke in dynamic use S 31.72 mm pitch of spring n 22.5 pc. number of active coils nt pc. total number of coils R 1.393 N/mm Spring rate Weight 1517.2508 g weight of one spring Fntol 39.2 N (+/-) tolerance of maximum force in static use Fndtol 38.7 N (+/-) tolerance of maximum dynamic force Detol 1.2 mm (+/-) tolerances of outer coil diameter L0tol 20.42 mm (+/-) tolerance of unstressed spring length Price group AU - price group F1tol N (+/-) tolerance of prestressed spring force F2tol N (+/-) tolerance of loaded spring force Technical drawing Compression spring Datasheet Compression spring D-369A Spring steel Ø 6.3 x 80 x 720 mm Datasheet download pdf file Metal spring characteristic Compression spring D-369A Spring steel Ø 6.3 x 80 x 720 mm Metal spring characteristic download pdf file CAD data Compression spring D-369A Spring steel Ø 6.3 x 80 x 720 mm CAD models download: step, stl, iges ... force-path-calculation Compression spring D-369A Spring steel Ø 6.3 x 80 x 720 mm force-path-calculation Compression spring D-369A Inquiry formular Compression spring D-369A Spring steel Ø 6.3 x 80 x 720 mm Inquiry formular Compression spring D-369A Similar compression springs to Compression spring D-369A Spring steel Ø 6.3 x 80 x 720 mm Below you will find similar Compression Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Compression Spring made from a different material The Compression Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) n (pc.) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness D-369A EN 10270-1 6.3 86.3 720 720.488 202.81 517.19 22.5 1.393 100.0 | 100.0 | 100.0 | 100.0 VD-369 1.4310 6.3 86.3 720 801.833 169 551 18.5 1.455 95.9 | 100.0 | 91.9 | 95.7 VD-369A 1.4310 6.3 86.3 720 618.824 202.81 517.19 22.5 1.197 92.9 | 100.0 | 92.9 | 85.9 Number of similar metal springs: 3 Similar Compression Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) Loaded spring length s2 (mm) Loaded spring deflection Priority De (mm) Outer coil diameter L0 (mm) unstressed spring length R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness D-313V 70 613 0.585 EN 10270-1 299.346 101.52 511.48 62.9 | 76.6 | 70.2 | 42.0 D-313U-01 70 492 0.672 EN 10270-1 270.495 89.45 402.55 59.0 | 71.0 | 57.7 | 48.2 D-364R-53 115 725 0.755 EN 10270-1 440.884 141.2 583.8 73.0 | 89.9 | 74.9 | 54.2 D-339J 75 615 0.769 EN 10270-1 387.347 111.4 503.6 70.7 | 81.3 | 75.6 | 55.2 D-339Z 85 691 0.802 EN 10270-1 454.103 125.01 565.99 75.4 | 91.3 | 77.2 | 57.6 D-364E 95 763 0.839 EN 10270-1 523.787 138.64 624.36 76.3 | 90.8 | 77.8 | 60.2 D-364V 105 798 1.077 EN 10270-1 691.36 155.97 642.03 85.5 | 90.8 | 88.3 | 77.3 D-344A 68 585 1.132 EN 10270-1 480.374 160.54 424.46 78.5 | 79.8 | 74.4 | 81.2 D-339Y 85 428 1.309 EN 10270-1 454.906 80.49 347.51 79.4 | 79.1 | 65.2 | 94.0 D-364D 95 472 1.369 EN 10270-1 523.92 89.23 382.77 84.3 | 81.2 | 73.4 | 98.3 D-344 68 585 1.376 EN 10270-1 621.076 133.78 451.22 88.4 | 79.8 | 86.7 | 98.8 D-369A 86.3 720 1.393 EN 10270-1 720.488 202.81 517.19 100.0 | 100.0 | 100.0 | 100.0 D-369 86.3 720 1.694 EN 10270-1 933.562 169 551 89.2 | 100.0 | 85.5 | 82.2 D-368A 86.3 490 1.694 EN 10270-1 543.875 169 321 80.1 | 89.4 | 68.8 | 82.2 D-394 108 835 2.256 EN 10270-1 1401.863 213.49 621.51 70.2 | 81.6 | 67.3 | 61.8 D-367A 86.3 365 2.322 EN 10270-1 553.225 126.73 238.27 68.3 | 83.6 | 61.4 | 60.0 D-368 86.3 490 2.508 EN 10270-1 932.126 118.27 371.73 73.2 | 89.4 | 74.6 | 55.6 D-374A 69.3 500 2.853 EN 10270-1 884.881 189.79 310.21 67.6 | 83.2 | 70.7 | 48.8 D-393A 108 630 3.091 EN 10270-1 1452.405 160.11 469.89 65.8 | 82.1 | 70.2 | 45.1 D-393 108 570 3.338 EN 10270-1 1403.939 149.44 420.56 62.4 | 79.3 | 66.3 | 41.7 D-374 69.3 500 3.469 EN 10270-1 1185.488 158.29 341.71 62.3 | 83.2 | 63.4 | 40.2 D-389E-26 89 390 3.549 EN 10270-1 928.92 128.26 261.74 61.2 | 80.4 | 64.1 | 39.3 D-367 86.3 355 3.688 EN 10270-1 967.989 92.5 262.5 61.2 | 83.1 | 62.6 | 37.8 D-399 88 600 4.405 EN 10270-1 1757.757 201 399 59.1 | 86.7 | 59.1 | 31.6 D-424 110 730 5.507 EN 10270-1 2636.36 251.25 478.75 55.1 | 80.0 | 59.9 | 25.3 D-414H 100 531 5.722 EN 10270-1 1935.088 192.84 338.16 50.8 | 76.7 | 51.3 | 24.3 D-398 88 410 6.52 EN 10270-1 1753.88 141 269 48.6 | 77.9 | 46.5 | 21.4 Number of similar metal springs: 26 Customs tariff number: 73202081; Compression spring D-369A Country of origin: DE, German; Compression spring D-369A Product image - Compression springs D-369A QR-Code: Compression spring D-369A
