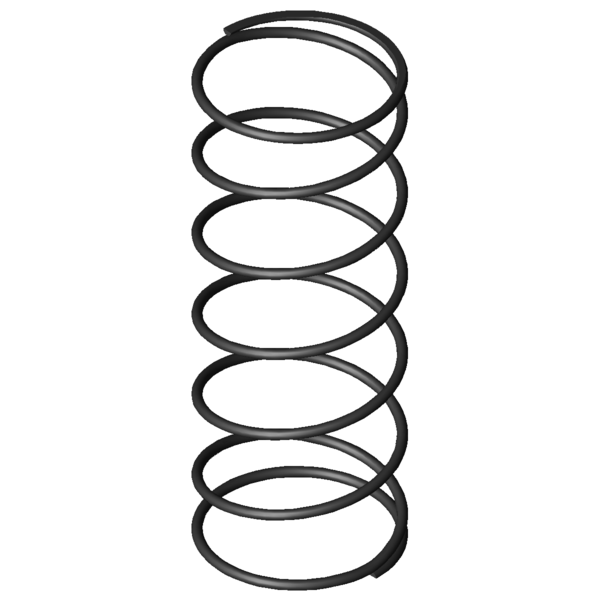

Formula symbolsValueUnitDescription
Material
EN 10270-1
-
Type of material
Spring ends
Closed and ground
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
6
mm
Wire diameter
Di
mm
Inner coil diameter
D
109
mm
Mean coil diameter
De
115
mm
Outer coil diameter
Dd
100
mm
maximum diameter of mandrel
Dh
121
mm
minimum diameter of bush
L0
300
mm
unstressed spring length
Lk
mm
buckling length
Fn
436.285
N
maximum force in static use
Ln
64.64
mm
Minimum length in static use
sn
235.36
mm
Maximum spring deflection in static use
Fndyn
417.519
N
maximum force in dynamic use
Lndyn
74.76
mm
Minimum length in dynamic use
shdyn
128.69
mm
Maximum stroke in dynamic use
S
53.455
mm
pitch of spring
n
5.5
pc.
number of active coils
nt
pc.
total number of coils
R
1.854
N/mm
Spring rate
Weight
573.9981
g
weight of one spring
Fntol
36.5
N
(+/-) tolerance of maximum force in static use
Fndtol
35.35
N
(+/-) tolerance of maximum dynamic force
Detol
2.2
mm
(+/-) tolerances of outer coil diameter
L0tol
15.7
mm
(+/-) tolerance of unstressed spring length
Price group
AS
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
