Detail page Compression springs: D-180V | Spring steel Ø 1.2 x 4.8 x 9 mm

Scaled prices (Price group: E)

QuantitySingle price [EUR]
1 4.9000 EUR
2 3.4600 EUR
3 3.3000 EUR
7 1.8900 EUR
17 0.9300 EUR
37 0.5700 EUR
75 0.3900 EUR
125 0.3566 EUR
175 0.3067 EUR
250 0.2817 EUR
350 0.2526 EUR
450 0.1895 EUR

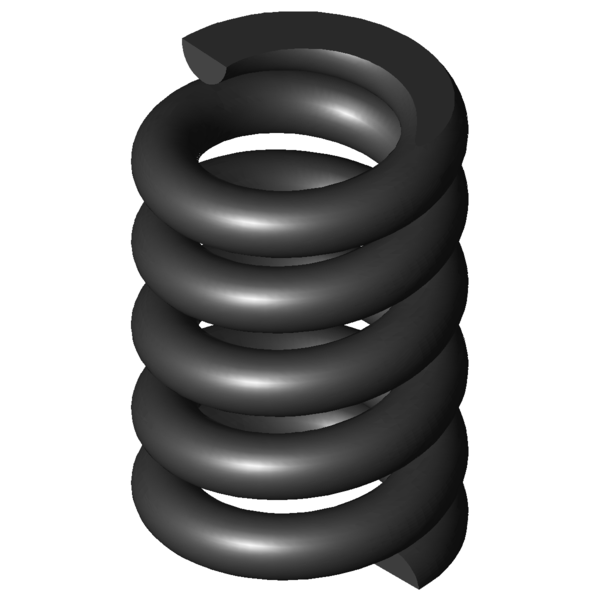

CAD image Compression springs D-180V

Technical Data

Formula symbolsValueUnitDescription
Material EN 10270-1 - Type of material
Spring ends Closed and ground - Spring ends
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm Prestressed spring deflection
F2 N Loaded spring force
L2 mm Loaded spring length
s2 mm Loaded spring deflection
d 1.2 mm Wire diameter
Di mm Inner coil diameter
D 4.8 mm Mean coil diameter
De 6 mm Outer coil diameter
Dd 3.1 mm maximum diameter of mandrel
Dh 6.5 mm minimum diameter of bush
L0 9 mm unstressed spring length
Lk mm buckling length
Fn 102.559 N maximum force in static use
Ln 7.12 mm Minimum length in static use
sn 1.88 mm Maximum spring deflection in static use
Fndyn 88.413 N maximum force in dynamic use
Lndyn 7.38 mm Minimum length in dynamic use
shdyn 0.87 mm Maximum stroke in dynamic use
S 2.229 mm pitch of spring
n 3.5 pc. number of active coils
nt pc. total number of coils
R 54.576 N/mm Spring rate
Weight 0.7415 g weight of one spring
Fntol 15.14 N (+/-) tolerance of maximum force in static use
Fndtol 14.92 N (+/-) tolerance of maximum dynamic force
Detol 0.25 mm (+/-) tolerances of outer coil diameter
L0tol 0.25 mm (+/-) tolerance of unstressed spring length
Price group E - price group
F1tol N (+/-) tolerance of prestressed spring force
F2tol N (+/-) tolerance of loaded spring force

Country of origin: DE | Customs tariff number: 73202081

Product image - Compression springs D-180V

Product image - Compression springs D-180V

QR-Code - Compression springs D-180V

QR-Code - Compression springs - D-180V | https://www.federnshop.com/en/products/compression_springs/d-180v.html
