Detail page Compression springs: D-180Q-04 | Spring steel Ø 1.2 x 9.8 x 68.7 mm

Scaled prices (Price group: F)

QuantitySingle price [EUR]
1 4.9400 EUR
2 3.4800 EUR
3 3.3200 EUR
7 1.9900 EUR
17 1.0000 EUR
37 0.6100 EUR
75 0.4600 EUR
125 0.3945 EUR
175 0.3631 EUR
250 0.3193 EUR
350 0.2780 EUR
450 0.2212 EUR

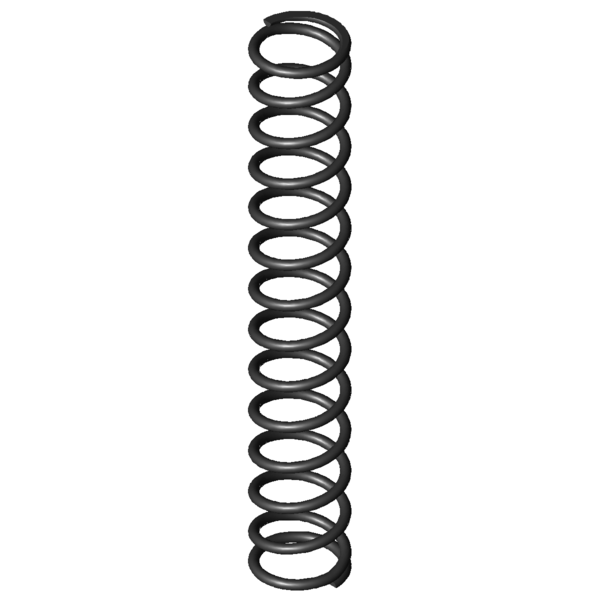

CAD image Compression springs D-180Q-04

Technical Data

Formula symbolsValueUnitDescription
Material EN 10270-1 - Type of material
Spring ends Closed and ground - Spring ends
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm Prestressed spring deflection
F2 N Loaded spring force
L2 mm Loaded spring length
s2 mm Loaded spring deflection
d 1.2 mm Wire diameter
Di mm Inner coil diameter
D 9.8 mm Mean coil diameter
De 11 mm Outer coil diameter
Dd 8 mm maximum diameter of mandrel
Dh 11.8 mm minimum diameter of bush
L0 68.7 mm unstressed spring length
Lk 50.3 mm buckling length
Fn 75.414 N maximum force in static use
Ln 26.7 mm Minimum length in static use
sn 42 mm Maximum spring deflection in static use
Fndyn 63.474 N maximum force in dynamic use
Lndyn 33.35 mm Minimum length in dynamic use
shdyn 12.76 mm Maximum stroke in dynamic use
S 5.4 mm pitch of spring
n 12.5 pc. number of active coils
nt pc. total number of coils
R 1.796 N/mm Spring rate
Weight 3.991 g weight of one spring
Fntol 3.83 N (+/-) tolerance of maximum force in static use
Fndtol 3.24 N (+/-) tolerance of maximum dynamic force
Detol 0.3 mm (+/-) tolerances of outer coil diameter
L0tol 1.41 mm (+/-) tolerance of unstressed spring length
Price group F - price group
F1tol N (+/-) tolerance of prestressed spring force
F2tol N (+/-) tolerance of loaded spring force

Country of origin: DE | Customs tariff number: 73202081
