Detail page Compression springs: D-180C | Spring steel Ø 1.1 x 6.4 x 26 mm

Scaled prices (Price group: D)

QuantitySingle price [EUR]
1 4.8500 EUR
2 3.4200 EUR
3 3.2600 EUR
7 1.8400 EUR
17 0.8300 EUR
37 0.5200 EUR
75 0.3400 EUR
125 0.2817 EUR
175 0.2192 EUR
250 0.1878 EUR
350 0.1452 EUR
450 0.1264 EUR

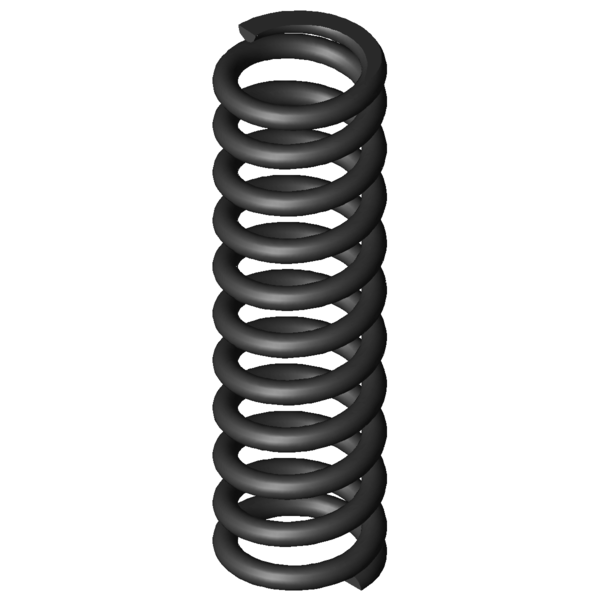

CAD image Compression springs D-180C

Technical Data

Formula symbolsValueUnitDescription
Material EN 10270-1 - Type of material
Spring ends Closed and ground - Spring ends
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm Prestressed spring deflection
F2 N Loaded spring force
L2 mm Loaded spring length
s2 mm Loaded spring deflection
d 1.1 mm Wire diameter
Di mm Inner coil diameter
D 6.4 mm Mean coil diameter
De 7.5 mm Outer coil diameter
Dd 4.8 mm maximum diameter of mandrel
Dh 8 mm minimum diameter of bush
L0 26 mm unstressed spring length
Lk mm buckling length
Fn 70.52 N maximum force in static use
Ln 14.23 mm Minimum length in static use
sn 11.77 mm Maximum spring deflection in static use
Fndyn 65.762 N maximum force in dynamic use
Lndyn 15.02 mm Minimum length in dynamic use
shdyn 4.66 mm Maximum stroke in dynamic use
S 2.621 mm pitch of spring
n 9.5 pc. number of active coils
nt pc. total number of coils
R 5.989 N/mm Spring rate
Weight 1.7369 g weight of one spring
Fntol 5.18 N (+/-) tolerance of maximum force in static use
Fndtol 5.11 N (+/-) tolerance of maximum dynamic force
Detol 0.25 mm (+/-) tolerances of outer coil diameter
L0tol 0.69 mm (+/-) tolerance of unstressed spring length
Price group D - price group
F1tol N (+/-) tolerance of prestressed spring force
F2tol N (+/-) tolerance of loaded spring force

Country of origin: DE | Customs tariff number: 73202081

Product image - Compression springs D-180C

Product image - Compression springs D-180C

QR-Code - Compression springs D-180C

QR-Code - Compression springs - D-180C | https://www.federnshop.com/en/products/compression_springs/d-180c.html
