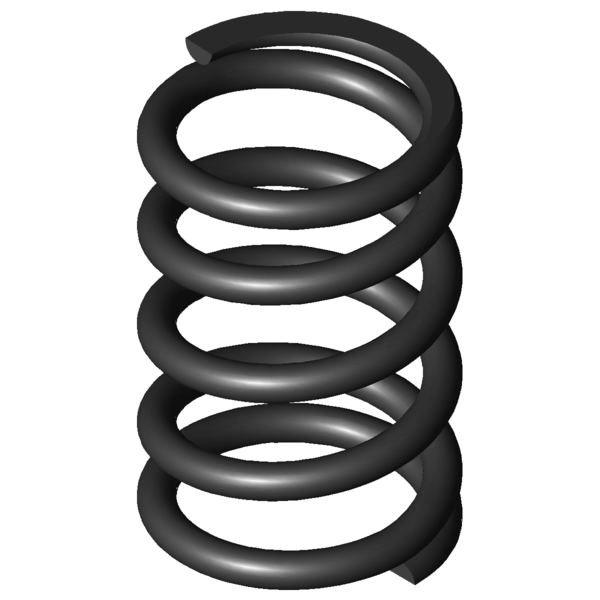

Formula symbolsValueUnitDescription
Material
EN 10270-1
-
Type of material
Spring ends
Closed and ground
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
1.1
mm
Wire diameter
Di
mm
Inner coil diameter
D
7.9
mm
Mean coil diameter
De
9
mm
Outer coil diameter
Dd
6.2
mm
maximum diameter of mandrel
Dh
9.7
mm
minimum diameter of bush
L0
14
mm
unstressed spring length
Lk
mm
buckling length
Fn
62.813
N
maximum force in static use
Ln
6.73
mm
Minimum length in static use
sn
7.27
mm
Maximum spring deflection in static use
Fndyn
59.899
N
maximum force in dynamic use
Lndyn
7.07
mm
Minimum length in dynamic use
shdyn
2.56
mm
Maximum stroke in dynamic use
S
3.686
mm
pitch of spring
n
3.5
pc.
number of active coils
nt
pc.
total number of coils
R
8.643
N/mm
Spring rate
Weight
1.0254
g
weight of one spring
Fntol
4.47
N
(+/-) tolerance of maximum force in static use
Fndtol
4.43
N
(+/-) tolerance of maximum dynamic force
Detol
0.25
mm
(+/-) tolerances of outer coil diameter
L0tol
0.41
mm
(+/-) tolerance of unstressed spring length
Price group
D
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
