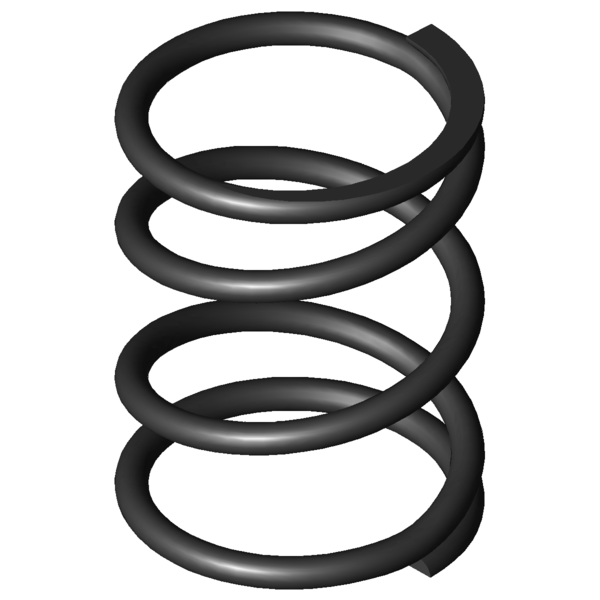

Formula symbolsValueUnitDescription
Material
EN 10270-1
-
Type of material
Spring ends
Closed and ground
-
Spring ends
F1
N
prestressed spring force
L1
mm
Prestressed spring length
s1
mm
Prestressed spring deflection
F2
N
Loaded spring force
L2
mm
Loaded spring length
s2
mm
Loaded spring deflection
d
0.55
mm
Wire diameter
Di
mm
Inner coil diameter
D
5.45
mm
Mean coil diameter
De
6
mm
Outer coil diameter
Dd
4.5
mm
maximum diameter of mandrel
Dh
6.6
mm
minimum diameter of bush
L0
8
mm
unstressed spring length
Lk
mm
buckling length
Fn
13.719
N
maximum force in static use
Ln
2.64
mm
Minimum length in static use
sn
5.36
mm
Maximum spring deflection in static use
Fndyn
13.309
N
maximum force in dynamic use
Lndyn
2.8
mm
Minimum length in dynamic use
shdyn
0.9
mm
Maximum stroke in dynamic use
S
3.311
mm
pitch of spring
n
2.25
pc.
number of active coils
nt
pc.
total number of coils
R
2.559
N/mm
Spring rate
Weight
0.1367
g
weight of one spring
Fntol
1.06
N
(+/-) tolerance of maximum force in static use
Fndtol
1
N
(+/-) tolerance of maximum dynamic force
Detol
0.25
mm
(+/-) tolerances of outer coil diameter
L0tol
0.33
mm
(+/-) tolerance of unstressed spring length
Price group
B
-
price group
F1tol
N
(+/-) tolerance of prestressed spring force
F2tol
N
(+/-) tolerance of loaded spring force
