Detail page Compression springs: D-080B-02 | Spring steel Ø 0.5 x 3.5 x 15 mm

Scaled prices (Price group: B)

QuantitySingle price [EUR]
1 4.7200 EUR
2 3.3300 EUR
3 3.1700 EUR
7 1.7700 EUR
17 0.7400 EUR
37 0.4200 EUR
75 0.2000 EUR
125 0.1664 EUR
175 0.1253 EUR
250 0.1002 EUR
350 0.0758 EUR
450 0.0694 EUR

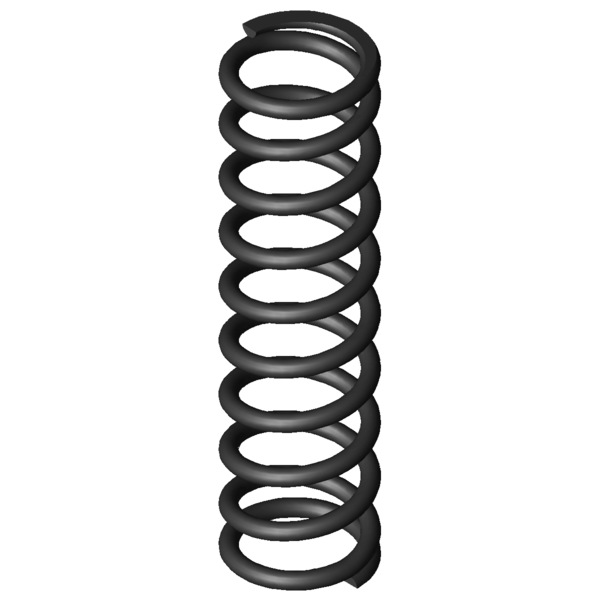

CAD image Compression springs D-080B-02

Technical Data

Formula symbolsValueUnitDescription
Material EN 10270-1 - Type of material
Spring ends Closed and ground - Spring ends
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm Prestressed spring deflection
F2 N Loaded spring force
L2 mm Loaded spring length
s2 mm Loaded spring deflection
d 0.5 mm Wire diameter
Di mm Inner coil diameter
D 3.5 mm Mean coil diameter
De 4 mm Outer coil diameter
Dd 2.7 mm maximum diameter of mandrel
Dh 4.4 mm minimum diameter of bush
L0 15 mm unstressed spring length
Lk mm buckling length
Fn 15.746 N maximum force in static use
Ln 5.99 mm Minimum length in static use
sn 9.01 mm Maximum spring deflection in static use
Fndyn 15.095 N maximum force in dynamic use
Lndyn 6.36 mm Minimum length in dynamic use
shdyn 1.46 mm Maximum stroke in dynamic use
S 1.706 mm pitch of spring
n 8.5 pc. number of active coils
nt pc. total number of coils
R 1.747 N/mm Spring rate
Weight 0.1792 g weight of one spring
Fntol 1.01 N (+/-) tolerance of maximum force in static use
Fndtol 1 N (+/-) tolerance of maximum dynamic force
Detol 0.15 mm (+/-) tolerances of outer coil diameter
L0tol 0.44 mm (+/-) tolerance of unstressed spring length
Price group B - price group
F1tol N (+/-) tolerance of prestressed spring force
F2tol N (+/-) tolerance of loaded spring force

Country of origin: DE | Customs tariff number: 73202081
