Detail page Compression springs: D-052E | Spring steel Ø 0.4 x 3.6 x 14.4 mm

Scaled prices (Price group: B)

QuantitySingle price [EUR]
1 4.7200 EUR
2 3.3300 EUR
3 3.1700 EUR
7 1.7700 EUR
17 0.7400 EUR
37 0.4200 EUR
75 0.2000 EUR
125 0.1664 EUR
175 0.1253 EUR
250 0.1002 EUR
350 0.0758 EUR
450 0.0694 EUR

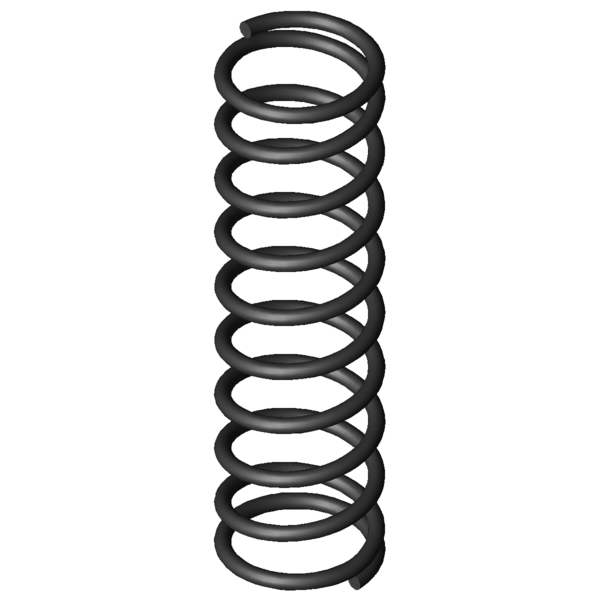

CAD image Compression springs D-052E

Technical Data

Formula symbolsValueUnitDescription
Material EN 10270-1 - Type of material
Spring ends Closed - Spring ends
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm Prestressed spring deflection
F2 N Loaded spring force
L2 mm Loaded spring length
s2 mm Loaded spring deflection
d 0.4 mm Wire diameter
Di mm Inner coil diameter
D 3.6 mm Mean coil diameter
De 4 mm Outer coil diameter
Dd 2.8 mm maximum diameter of mandrel
Dh 4.5 mm minimum diameter of bush
L0 14.4 mm unstressed spring length
Lk mm buckling length
Fn 5.818 N maximum force in static use
Ln 5.55 mm Minimum length in static use
sn 8.85 mm Maximum spring deflection in static use
Fndyn 5.57 N maximum force in dynamic use
Lndyn 5.93 mm Minimum length in dynamic use
shdyn 3.15 mm Maximum stroke in dynamic use
S 1.576 mm pitch of spring
n 8.5 pc. number of active coils
nt pc. total number of coils
R 0.658 N/mm Spring rate
Weight 0.118 g weight of one spring
Fntol 0.46 N (+/-) tolerance of maximum force in static use
Fndtol 0.45 N (+/-) tolerance of maximum dynamic force
Detol 0.2 mm (+/-) tolerances of outer coil diameter
L0tol 0.56 mm (+/-) tolerance of unstressed spring length
Price group B - price group
F1tol N (+/-) tolerance of prestressed spring force
F2tol N (+/-) tolerance of loaded spring force

Country of origin: DE | Customs tariff number: 73202081
